| Description |

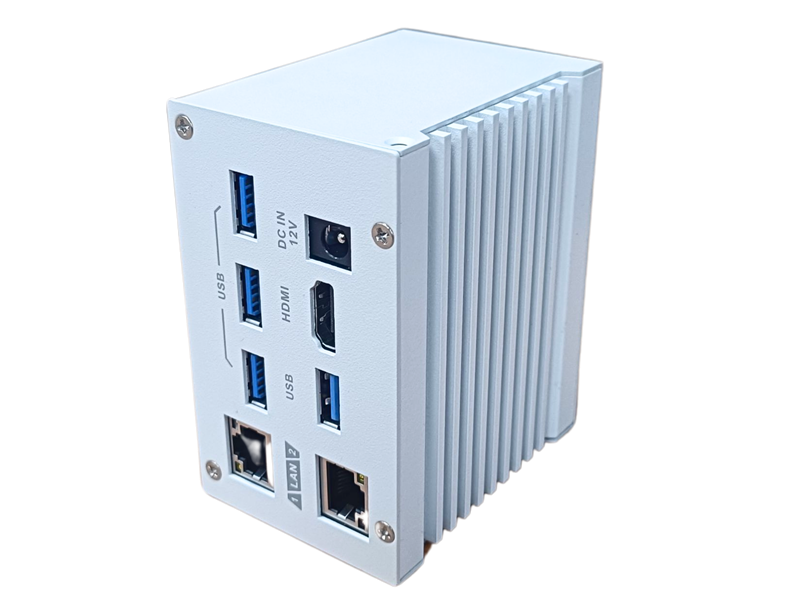

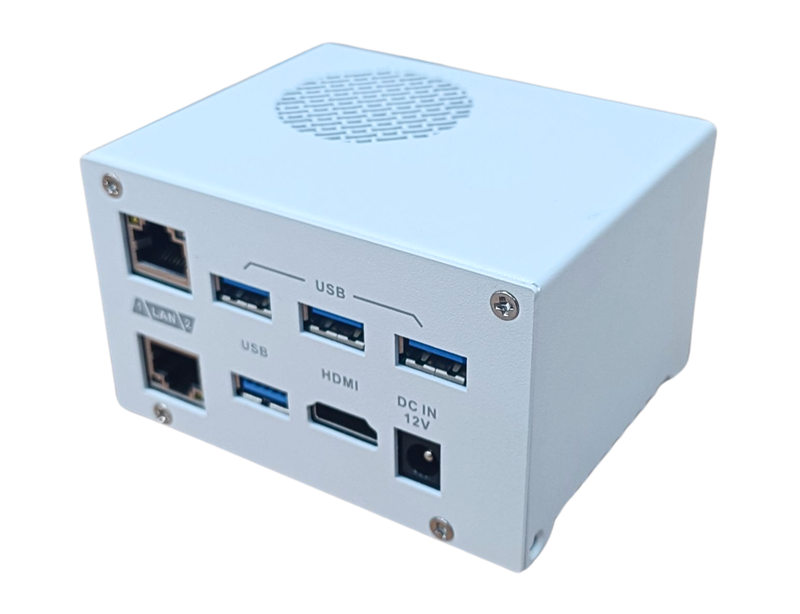

| Introducing the Acrosser IES-10A1, a versatile industrial-grade solution designed for reliable performance. Powered by the Intel Atom X5-E3940 Quad Core 1.6GHz processor, this system is equipped with onboard LPDDR4 4GB memory and eMMC 32G storage for efficient operations. The IES-10A1 features a built-in Micro SD Card Slot, HDMI output, and two Gigabit Ethernet RJ-45 LAN ports for seamless connectivity. With four USB 3.0 ports, users can easily connect peripherals for enhanced functionality. Additionally, the system offers expansion options with an M.2 E key slot for a Wifi/BT Module and a Mini PCIe connector for a 4G LTE Module. Experience reliability and performance with the Acrosser IES-10A1. |

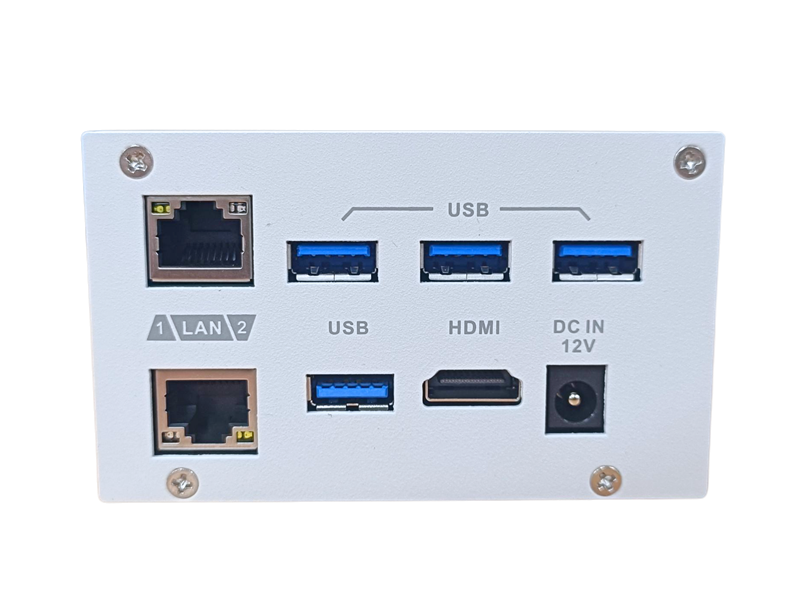

| I/O Connectors |
 |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
| ● Intel Atom X5-E3940 Quad Core 1.6GHz ● Onboard LPDDR4 4 GB / eMMC 32G ● Built-in Micro SD Card Slot x 1 ● HDMI output x 1 ● Gigabit Ethernet RJ-45 x 2 LAN port ● USB 3.0 x 4 ● M.2 E key x 1 (For Wifi/BT Module) ● Mini PCIe connector x 1 (For 4G LTE Module) |
| |
| System |
| CPU/GPU | Intel Atom X5-E3940 Processor SoC / Intel HD 500 Graphics |
| Memory | Onboard LPDDR4 1866MHz 4GB |
| Storage | eMMC 5.1 32GB |
| Real time clock | Yes |
| Cellular | Mini PCIe Connector x 1 |
| Wireless | M.2 2230 E Key slot x 1 |
| Operating System | Window 10 / Linux (by request) |
| Power Supply |
| Power Requirement |
DC 12V Power input |
| Power Consumption | 20W |
| MTBF (Hours) | 516,789 |
| Environmental and Mechanical |
| Dimension | 78.1 x 95.2 x 57 mm |
| Weight | 880g |
| Mouting/ Installation |
TBD |
| Operating Temp. | -20°C to 75°C (w/ Fan) |
| Storage Temp. | -40°C to 80°C |
| Operating Humidity | 5~90% (non-condensing) |
| Certification |
| Regulations | CE, FCC |
| Interface |
| Ethernet | 2 x Intel I210 GbE RJ45 |
| USB | 4 x Type A USB 3.0 |
| Display | 1 x HDMI 1.4 |
| Power Connector | DC Jack |
| Other Interface | Antenna x2 (Optional) |
| Ordering Information |
| Part Number | Intel Atom X5-E3940, 1.6 GHz, LPDDR4 4 GB, eMMC 32 GB, 1xHDMI, 2xGbE, 4xUSB 3.0, DC12V |
| Packing List | 1. IES-10A1 2. Screws Package |
| Optional Accessories |
| 4AR33-1203A-TD1 | Adapter DC 12V |
| 4AR31-12033-US1 | Power Cord |
Specifications are subject to change without notice.
| |

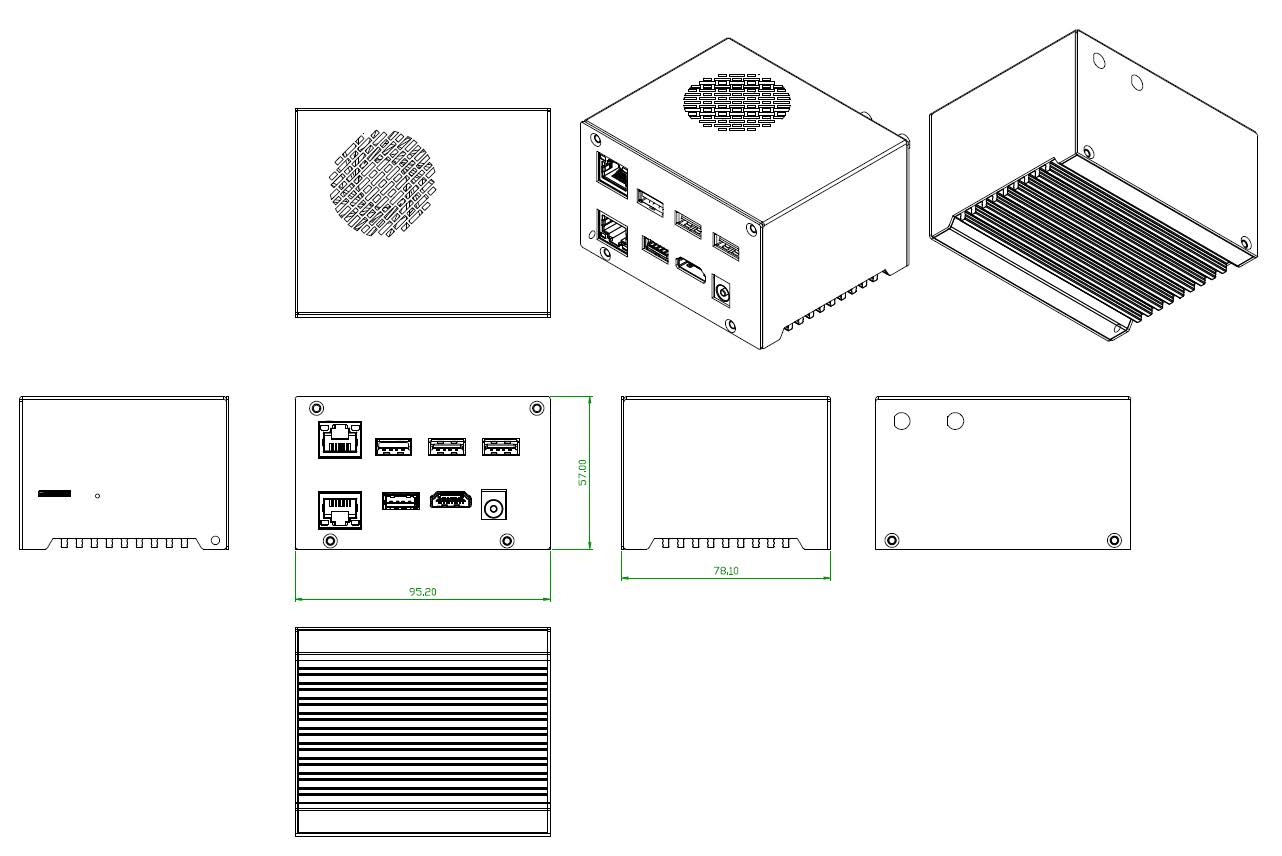

| Dimension |
.jpg) |
| |
