SMARC Modules

The SMARC modules are the only computer-on-module form factor that can handle both ARM and x86 designs. The 314 pins on SMARC’s high speed MXM3 connector allow it to cover both typical x86 interfaces and ARM type low level signals. Leveraging ARM SoCs enables integration with smart devices like tablets and mobile phones. Other low-power SoCs and CPUs, such as x86-based tablet processors and other RISC architectures, are also commonly used in the SMARC standard.

With a power envelope typically below 6W, this module is perfectly suited for applications requiring designs capable of operating in extreme environmental conditions.


Product
Model
Processor 
Serial interfaces 
Network 
Display 
Expansion Slot 

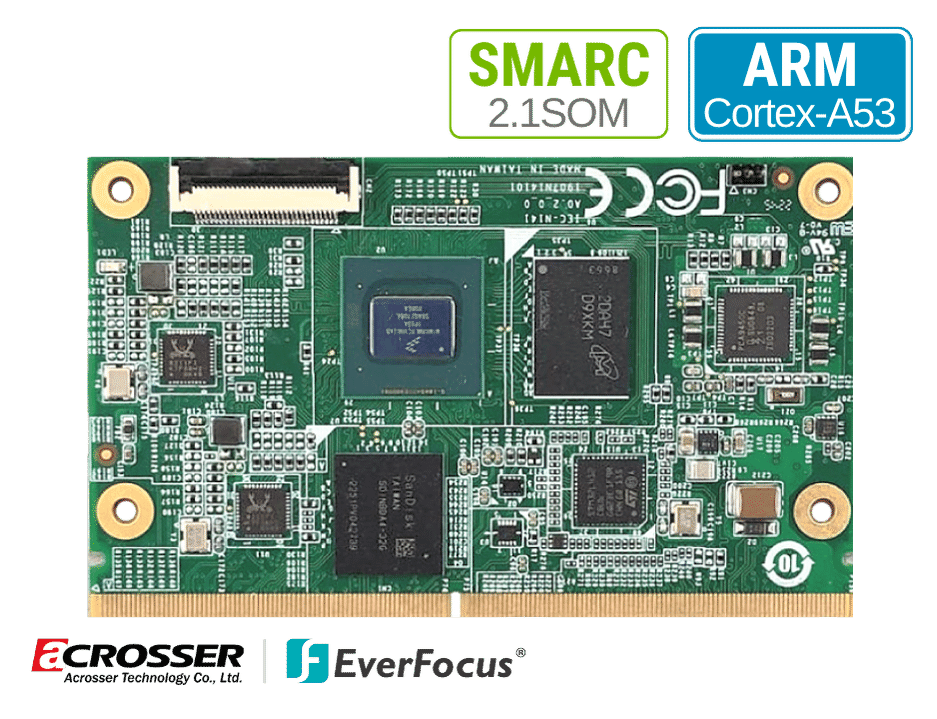

iEC-N141
Model：
iEC-N141
Processor：
NXP i.MX 8 M Plus Quad-core Cortex-A53/M7
Serial interfaces：
-
Network：
2 x Ethernet 10/100/1000
Display：
1 x HDMI 2.0 1080P@60, 1 x 4 Lane LVDS
Expansion Slot：
1 x SD slot 1 x PCIe Gen3

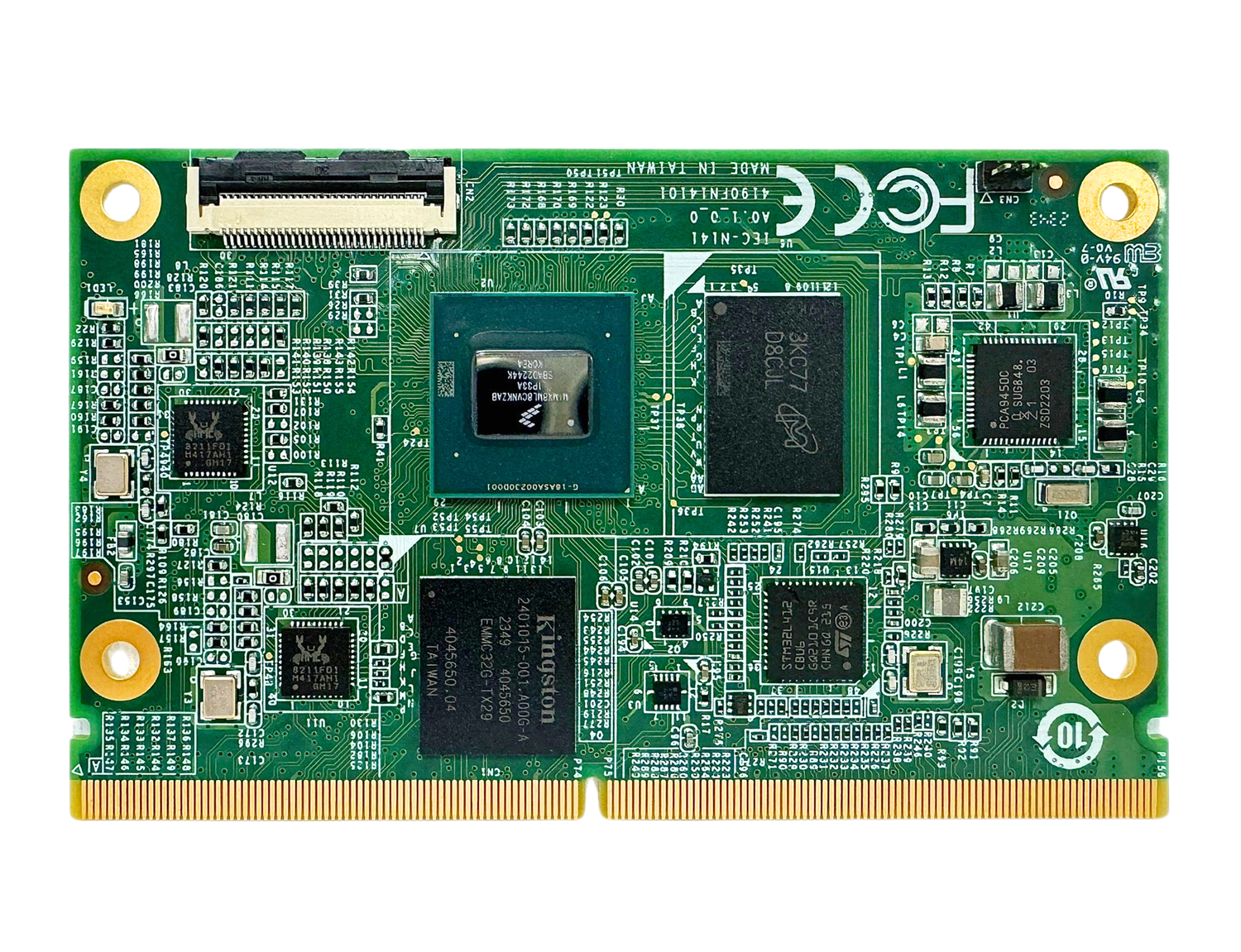

iEC-N148
Model：
iEC-N148
Processor：
NXP i.MX 8 M Plus Quad-core Cortex-A53/M7
Serial interfaces：
-
Network：
2 x Ethernet 10/100/1000
Display：
1 x HDMI 2.0 1080P@60, 1 x 4 Lane LVDS
Expansion Slot：
1 x SD slot 1 x PCIe Gen3
iEC-N241
Model：
iEC-N241
Processor：
ARM Cortex-A53
Serial interfaces：
2 x 2-Wire + 2 x 4-Wire
Network：
Ethernet 2-port 10/100/1000
Display：
1 x HDMI 1.4a 1080P@60, 1 x 4 Lane LVDS
Expansion Slot：
-
iEC-N321
Model：
iEC-N321
Processor：
NXP i.MX 93, dual Cortex-A55
Serial interfaces：
2 x 2-Wire + 2 x 4-Wire
Network：
2 x Ethernet 10/100/1000
Display：
1 x HDMI 1.4a 1080P@60 1 x 4 Lane LVDS
Expansion Slot：

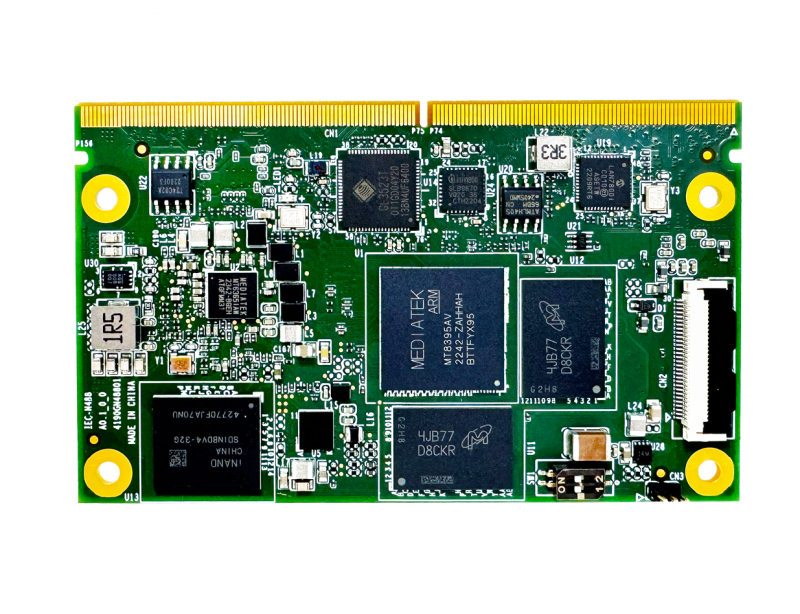

iEC-N488
Model：
iEC-N488
Processor：
MT8395 Octa-core CPU: 4 x A78 @2.2GHz + 4 x A55 @2.0GHz
Serial interfaces：
2 x 2-Wire + 2 x 4-Wire
Network：
2 x Ethernet 10/100/1000
Display：
1 x HDMI Out 1 x LVDS
Expansion Slot：
-
ACM-IMX8E
Model：
ACM-IMX8E
Processor：
NXP i.MX8M Plus Cortex-A53
Serial interfaces：
2 x UART, 2 x CAN bus, 3 x I²C, 1 x JTAG
Network：
2 x Gigabit Ethernet
Display：
1 x HDMI 2.0a, 1 x dual channel 24-bit LVDS, 1 x MIPI-DSI 4-lane shared with second LVDS channel
Expansion Slot：
-
