| Description |

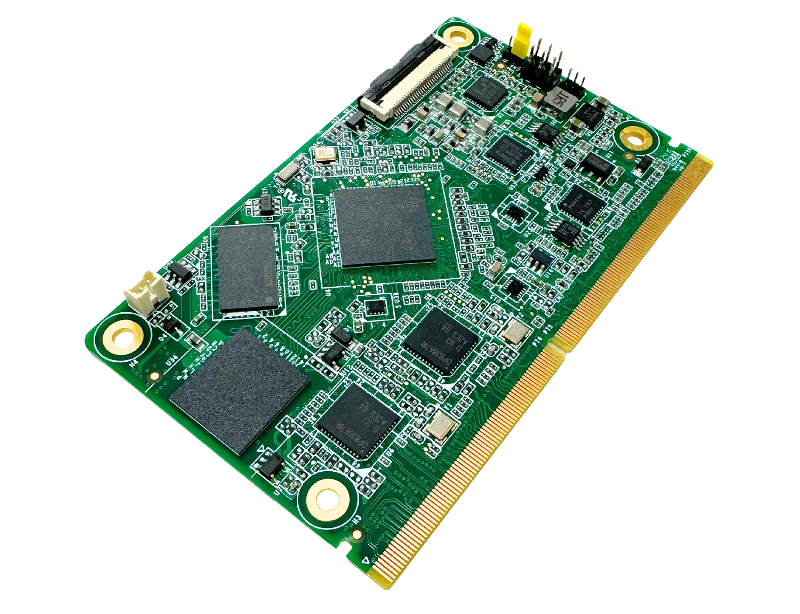

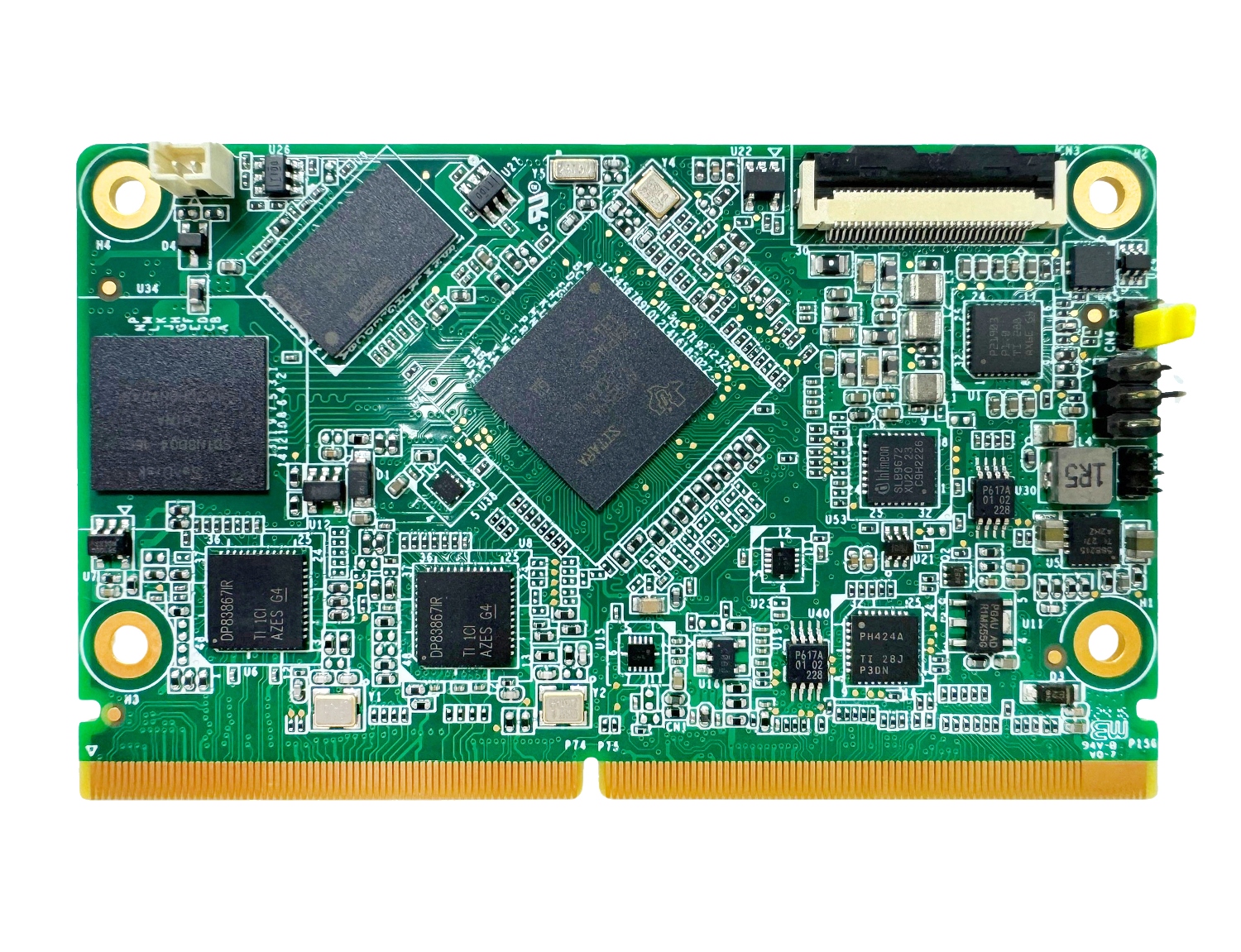

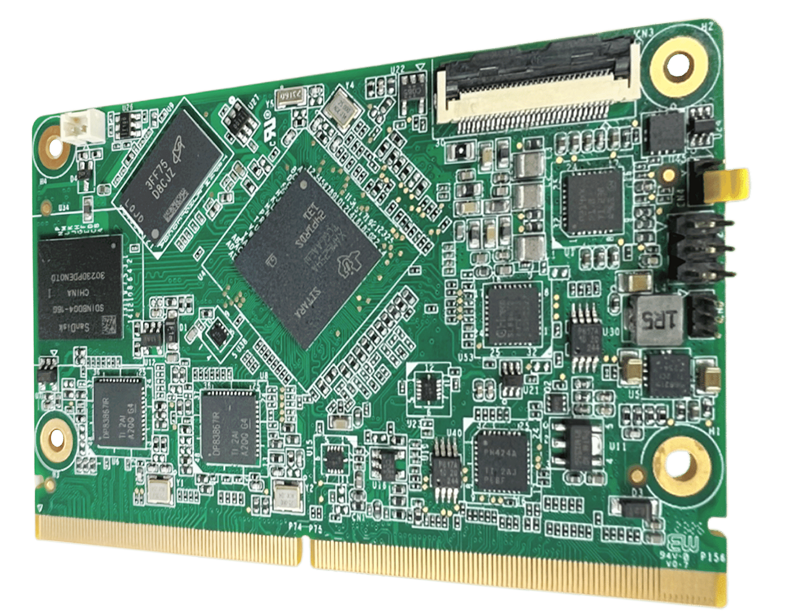

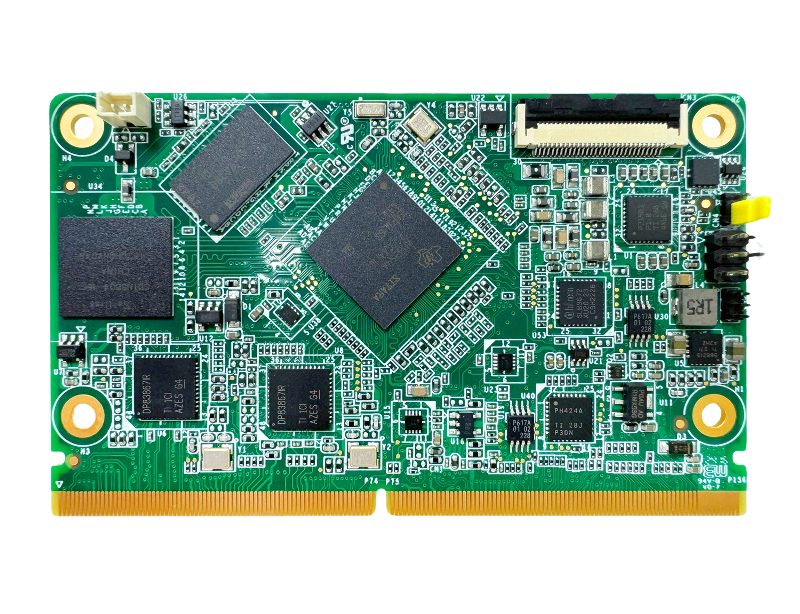

| The iEC-N241 is a powerful and compact SMARC 2.1 System on Module (SOM) with the TI AM625 SoC. With up to 1.4GHz quad-core ARM Cortex-A53 processor, this SOM delivers high-performance computing for a wide range of applications. Measuring at a short size of 82 x 50mm and featuring an MXM3 connector, the iEC-N241 is designed to fit into space-constrained environments without compromising performance. It supports up to 2GB of LPDDR4 memory and 16GB of eMMC storage, providing ample space for data storage and processing. The iEC-N241 also features double display support with HDMI 1.4a and LVDS interfaces, enabling versatile display options. It operates in an industrial temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments. The iEC-N241 supports Android and Linux operating systems, making it easy to integrate into existing systems. Overall, the iEC-N241 is a feature-rich and reliable SOM that can meet the demands of various industrial applications. |
| I/O Connectors |
|
|
| Acrosser Academy |
   3.gif) |
| Features |
|
• TI AM625, Quad-core ARM Cortex-A53 |
| |
| Specification |
| CPU/MCU | AM625, Quad-core Cortex-A55 @1.4 GHz Processor |
| Memory | 2GB LPDDR4 |
| Storage | 16GB eMMC |
| Real time clock | -- |
| Indicators | -- |
| Cellular | -- |
| Wireless LAN | -- |
| Operating System | -- |
| Support Protocol | -- |
| Power Supply |
| Power Requirement | 5V |
| Power Consumption | -- |
| MTBF (Hours) | -- |
| Environmental and Mechanical |
| Dimension | 3.22“ x1.96“ (82 x 50 mm) |
| Weight | 20 g |
| Mouting/Installation | -- |
| Operating Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
| Storage Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | -- |
| Carrier | -- |
| Interface (Supply by carry board) |
| Serial Port | 2 x 2-Wire + 2 x 4-Wire |
| Ethernet | 2 x Ethernet 10/100/1000 |
| USB | 2 x USB2.0 |
| ADC | -- |
| DI/DO | -- |
| AI/AO | -- |
| CAN Bus | -- |
| Display | 1 x HDMI 1.4a 1080P@60 1 x 4 Lane LVDS |
| Video Input | MIPI CSI 1.3 + MIPI D-PHY 1.2 4 Lane |
| Power Connector | -- |
| Debug Port | -- |
| Expansion Slot | -- |
| Other Interface | -- |
| Ordering Information |
| 2IEC-N241-01 | SOM, TI AM625, 1.4GHz, 2G RAM, 16GB eMMC |

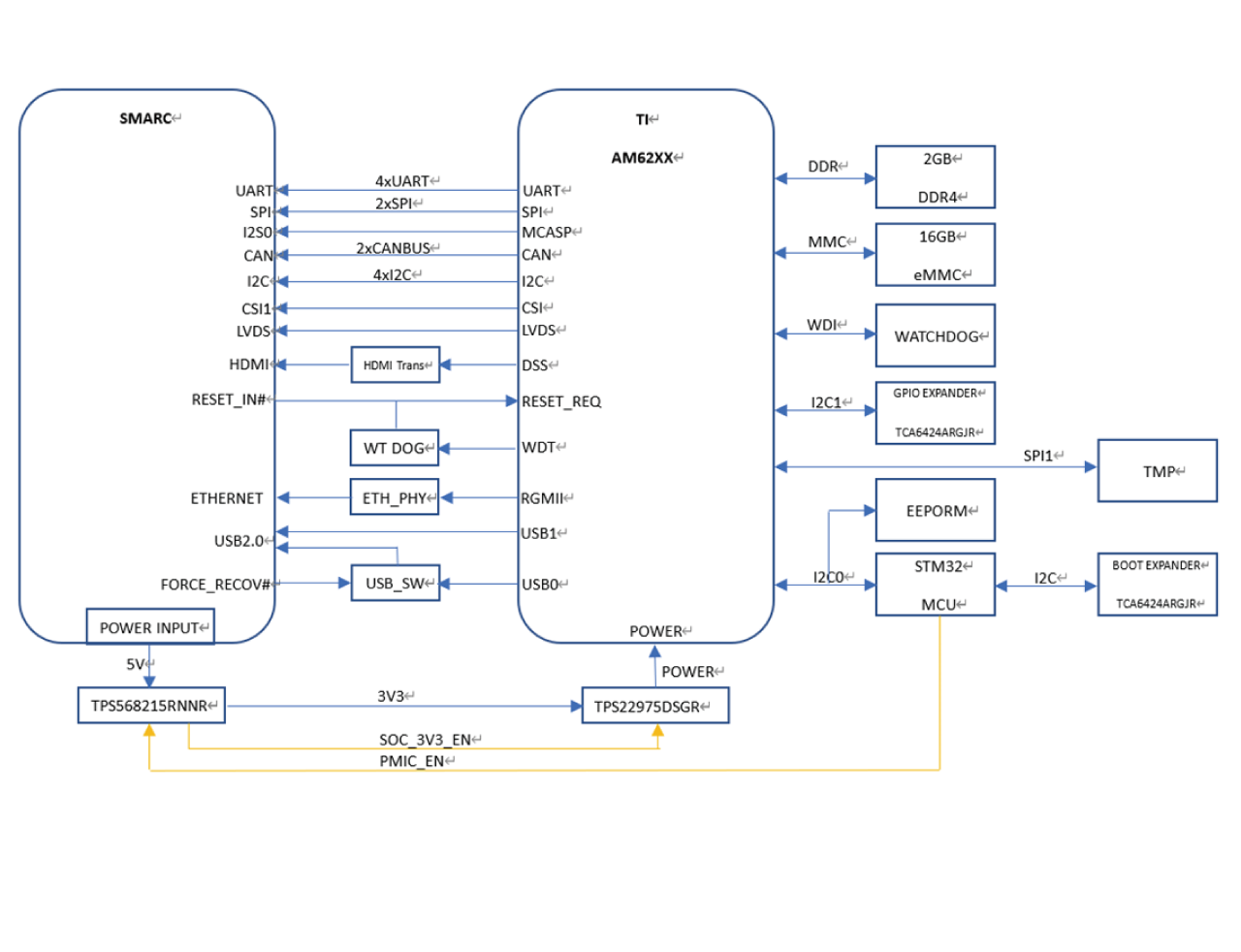

| Block Diagram |
 |
Specifications are subject to change without notice.
| |
