| Description |
|

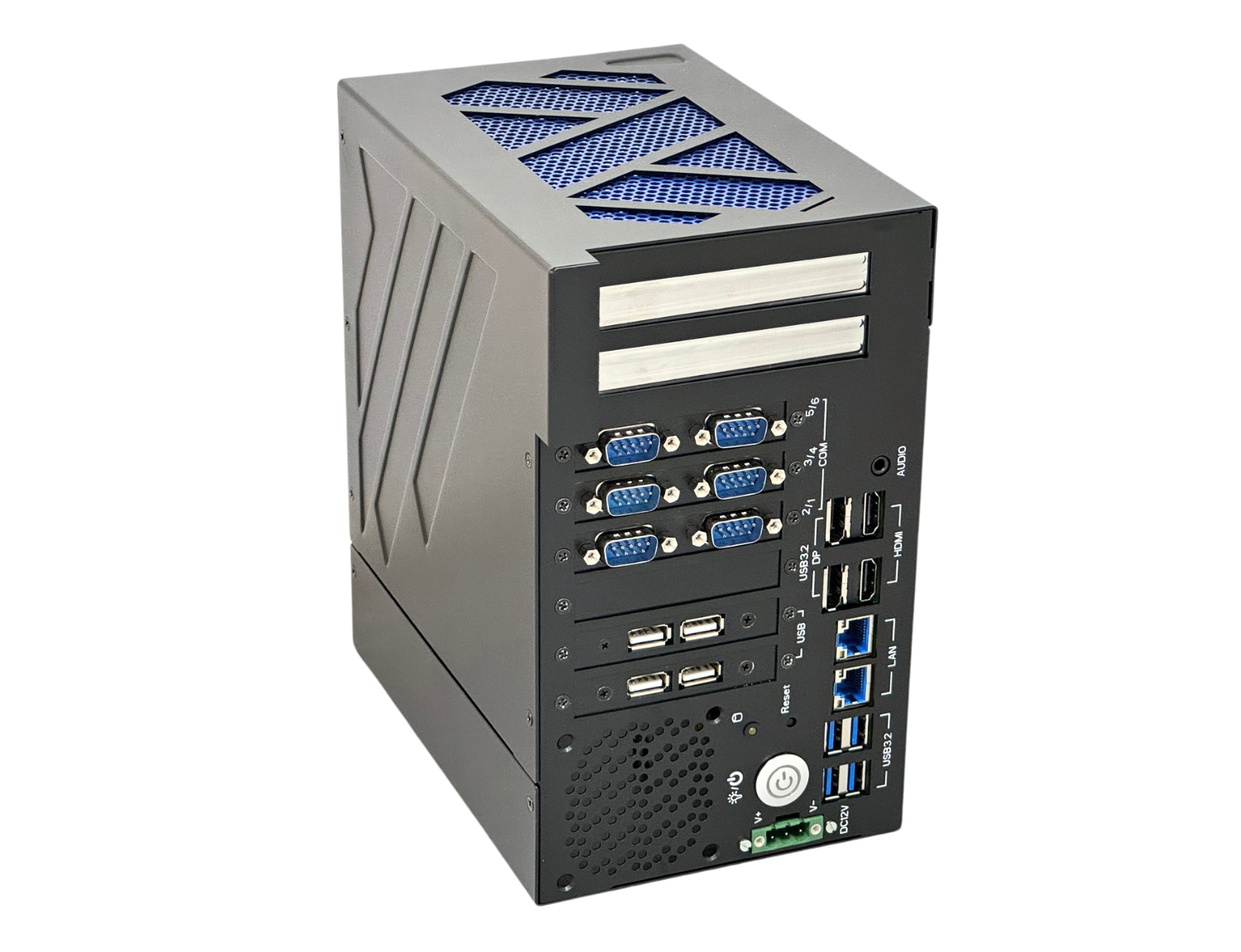

Introducing the Acrosser AIS-5530, a state-of-the-art AI inference embedded system powered by 12th/13th Gen Intel® Core™ Processors. This advanced system boasts DDR5 4800 MHz, Dual Channel SODIMM x 2, supporting up to 64GB of memory. With USB 2.0 x 4, USB 3.2 x 6, PCIe [x1] x 16, Intel® I226-LM 2.5GbE x 2, M.2 2280 M-Key x1, M.2 B key 3042 x1, M.2 E key 2230 x1, and 6 x COM ports, the AIS-5530 delivers exceptional performance and versatile connectivity for a wide range of industrial applications. |

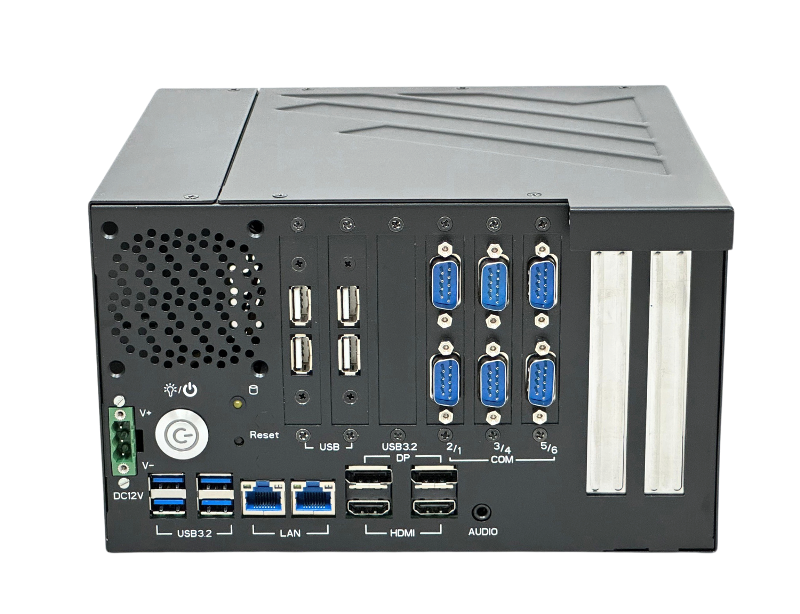

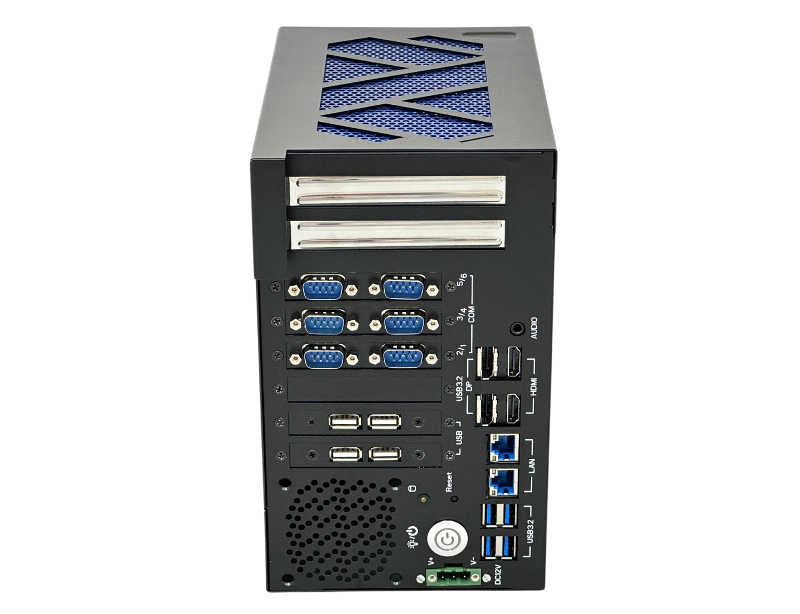

| I/O Connectors |
 |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
| ● 2x DDR5 5600MHz/4800MHz SO-DIMM up to 64GB ● USB 2.0 x 4, USB 3.2 x 6 ● PCIe [x1] x 16, ● Intel® I226-LM 2.5GbE x 2 ● M.2 2280 M-Key x1, M.2 B key 3042 x1, M.2 E key 2230 x1 ● 6 x COM |
| |
| System |
| CPU | Intel® 13th/12th LGA1700 Socket Processor (Max. 65W TDPs under 180A) |
| Chipset | Intel® Q670E Chipset |
| Memory | 2x DDR5 5600MHz/4800MHz SO-DIMM up to 64GB |
| Storage | 1 x M.2 M-Key 2280, PCI-e Gen.3 x4 NVMe 1 x M.2 M-Key 2242, PCI-e Gen.4 x4/SATA |
| BIOS | AMI UEFI |
| Wake on LAN | Yes |
| Watch Dog | 255 Levels |
| Operating System | Windows® 10 (64-bit) Linux Ubuntu 20.04.1/Kernel 5.15 |
| Power Supply |
| Power Requirement |
+12V~36V |
| Power Consumption | Intel® Core™ i9-13900E, 7.13A @+12V |
| MTBF (Hours) | AT/ATX |
| Environmental and Mechanical |
| Dimension | 130mm x 215mm x 202mm |
| Operating Temp. | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temp. | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Temp. | 0% ~ 90% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC Class A |
| Interface |
| Interface | 2Realtek ALC897, High Definition Audio. |
| HDD | 2 x internal SATAIII 2.5” HDD bay |
| Ethernet | 2 x 2.5GbE RJ45(1 x intel i225V, 1 x intel 225LM) |
| USB | 4x USB3.2 Gen.2,(Type A) 2x USB3.2 Gen.1,(Type A),4x USB2.0(Type A) |
| Audio | Line in, Line out , Mic (High Definition Audio Interface) |
| Graphics Controller | Intel® UHD Graphics 770 |
| Display | 2x HDMI 2.0b, (Max Resolution: 4096×2160@60Hz) 2x DP 1.4a, (Max Resolution: 8K@60Hz) |
| SMBus/I2C | I2C x 2, SMBus x 1 |
| GPIO | 8 bit |
| Expansion Slot | PEG 5.0 [x16] x 1 M.2 B key 3042 M.2 E key 2230 |
| Packing List |
| ● AIS-5530 x1 |
| Ordering Information |
| AIS-5530 | AI Inference Embedded System |
Specifications are subject to change without notice.
| |
