Description

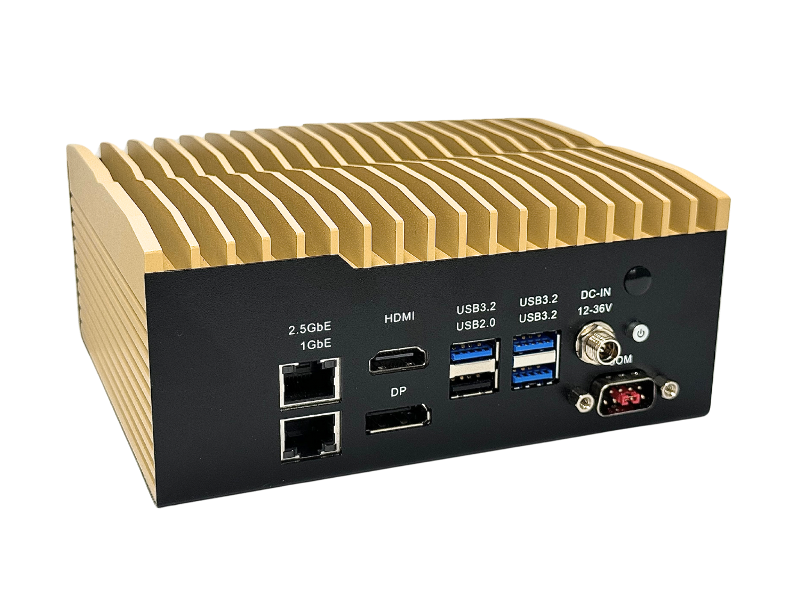

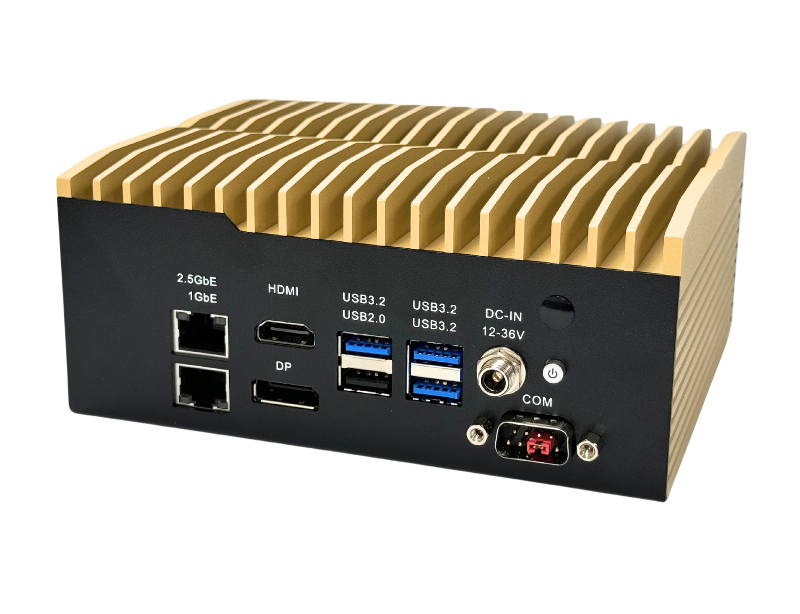

Acrosser IES-3030 is a fanless embedded system powered by the 13th Gen Intel® Core™ i7/i5/i3/Celeron® Processor SoC. It features onboard dual channel LPDDR5 memory support up to 32GB, offering excellent performance. With 4 independent displays capable of up to 4K resolution at 60Hz, it provides a high-quality visual experience. Equipped with M.2 slots (2280 M-Key x 2 PCIe Gen 4 [x4], 3052 B-Key), TPM 2.0 security, USB 4.0 (Type-C), and dual LAN (2.5GbE x 1, GbE x 1), the IES-3030 ensures connectivity and data security for various applications.

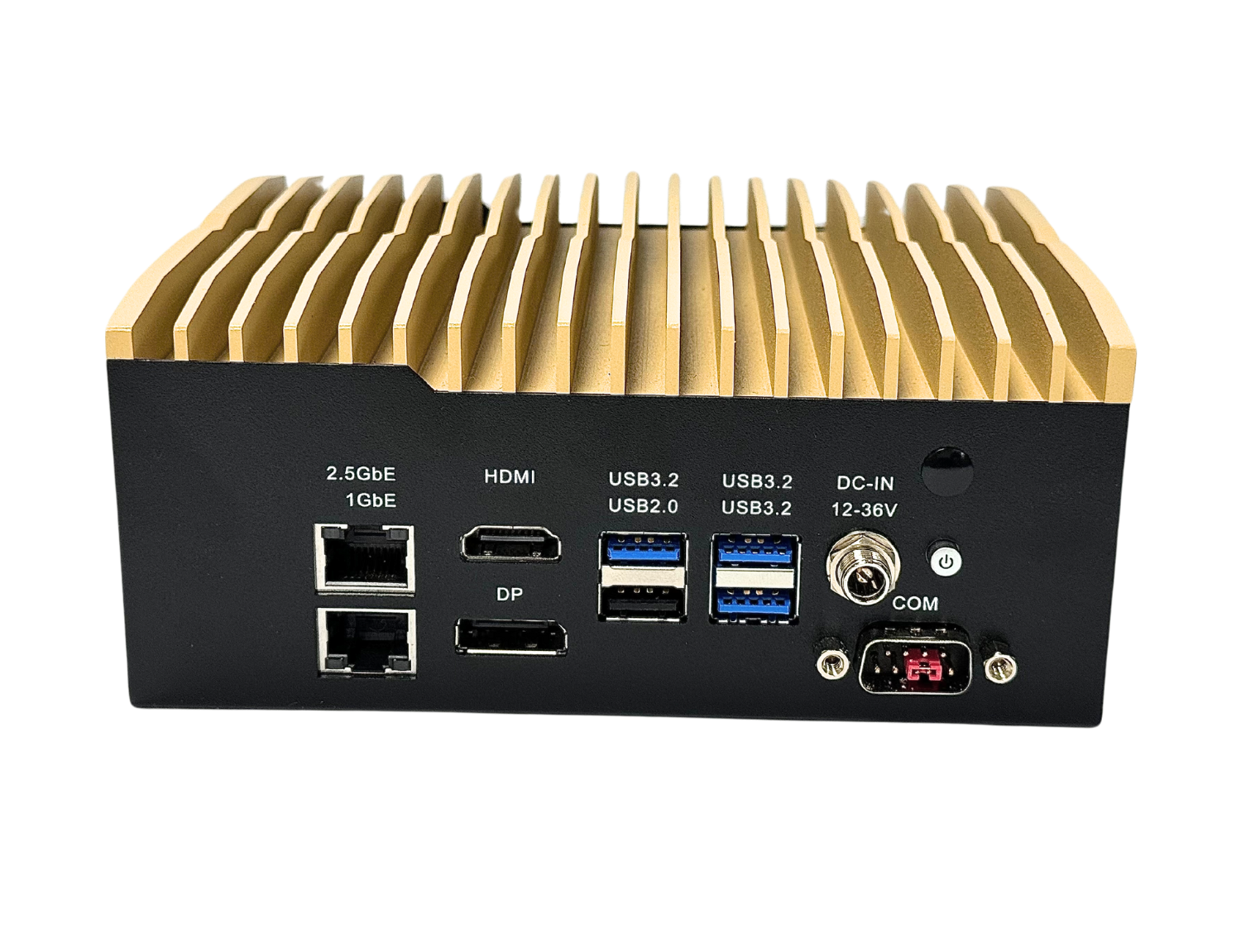

 I/O Connectors
  Ask an Expert  >





 Acrosser Academy

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 Features
●13th Gen Intel® Core™ i7/i5/i3/Celeron® Processor SoC
● Onboard Dual Channel LPDDR5, up to 32GB
● 4 Independent Displays up to 4K at 60Ghz
● M.2 2280 M-Key x 2 (PCIe Gen 4 [x4])
● M.2 3052 B-Key (5G)
● TPM 2.0
● USB 4.0 (Type-C)
● LAN x 2 (2.5GbE x 1, GbE x 1)
Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 System
 CPU/GPU  Intel® Core™ i7-1370PE
 Intel® Core™ i5-1340PE
 Intel® Core™ i3-1320PE
 Memory  On board LPDDR5 8/16GB
 Storage  M.2 2280 M-Key x 2 (PCIe Gen 4.0 [x4]), SATA 6Gb/s x 1
 Real time clock  Yes
 Indicators  Power LED
 Wireless  Wi-Fi, 4G/5G
 Operating System  Windows 10 IoT Enterprise / Windows 11 /Ubuntu 22.04 LTS
 Power Supply
 Power
 Requirement
 DC 12Vdc
 Environmental and Mechanical
 Dimension  150mm x 124mm x 67mm
 Weight  -
 Mouting/
 Installation
 -
 Operating Temp.  -20°C to 60°C
 Storage Temp.  -40°C to 80°C (-40°F to 176°F)
 Operating Humidity  5~90% (non-condensing)
 Certification
 Regulations  CE, FCC
 Carrier  -
 Interface
 Serial Port  2 x RS-232/RS485/RS422 DB9
 CAN Bus  -
 Ethernet  Intel® I226-IT x 1 (TSN), Intel® I219 x 1 (vPRO)
 USB  USB 2.0 (Type-A) x 1
 USB 3.2 Gen 2 (Type-A) x 3
 USB 4.0 (Type-C) x 1
 DI/DO  -
 AI/AO  -
 Display  1 x HDMI 2.0b
 1 x DP 1.2
 1 x DP 1.4a via USB Type-C
 Power Connector  12V DC Jack
 Debug Port  -
 Expansion Slot  M.2 2230 E-Key x 1
 M.2 2280 M-Key x 2 (PCIe Gen 4.0 [x4])
 SATA 6Gb/s x 1
 M.2 3052 B-Key x 1
 Other Interface  TPM 2.0
 Ordering Information
 Part Number  IES-3037-01
 IES-3035-01
 IES-3033-01
 Packing List  Intel i7-1370PE + 16GB LPDDR5 .2LAN.2COM.4USB.
 Intel i5-1340PE + 16GB LPDDR5 .2LAN.2COM.4USB.
 Intel i3-1320PE + 8GB LPDDR5 .2LAN.2COM.4USB.
 Optional Accessories
 Power Adaotor  Power Adapter.12V/120W
 power cord  power cord x 1


 Specifications are subject to change without notice.
