| Description |
| Introducing the high-performance industrial-grade Acrosser IES-3015 featuring the 11th Gen Intel® Core™ i5-1145G7E Processor SoC for exceptional processing power. With 2 DDR4 3200MHz SO-DIMM slots supporting up to 64GB of memory, seamless connectivity via Intel i219-LM GbE and Intel i225-V 2.5GbE Ethernet ports, versatile storage options with M.2 slots, enhanced display capabilities with HDMI and DP1.4 ports, and TPM 2.0 integration for security, the IES-3015 is designed to meet your industrial computing needs with top-tier performance and reliability. |

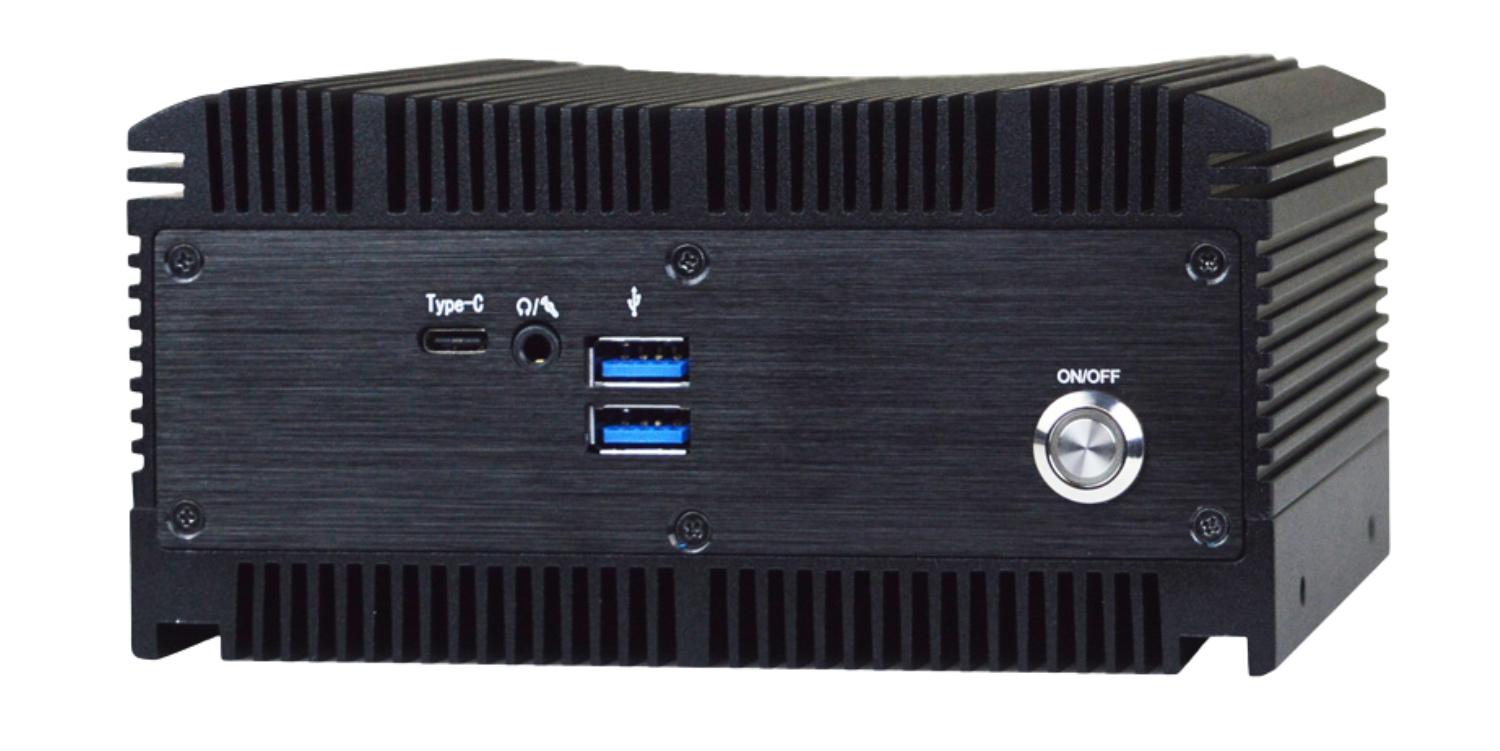

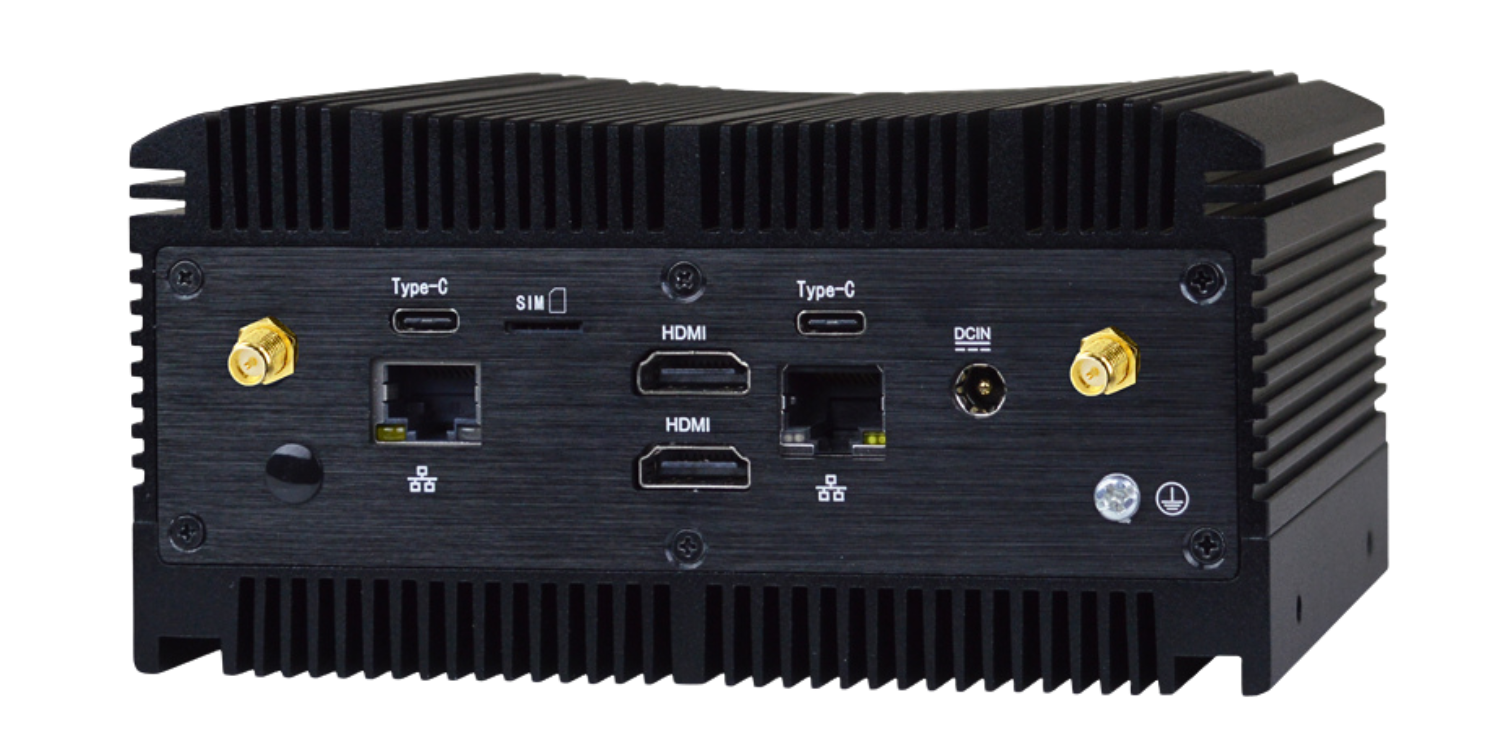

| I/O Connectors |
  |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
| ● 11th Gen Intel® Core™ i5-1145G7E Processor SoC ● 2 x DDR4 3200MHz SO-DIMM up to 64GB ● 1 x Intel i219-LM GbE, 1 x Intel i225-V 2.5GbE ● 1 x M.2 M-key 2242/2280 support NVMe, 1 x M.2 E-key 2230 Support CNVi, 1 x M.2 B-key 3042/3052 ● 2 x HDMI, 2 x DP1.4 (from USB3.2 (Gen.2) Type-C) ● TPM 2.0 |
| |
| System |
| CPU/GPU | Intel® Core™ i5-1145G7E (TDP 15W) |
| Memory | 2 x DDR4 3200MHz SO-DIMM up to 64GB |
| Storage | 1 x M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) support NVMe |
| Real time clock | Yes |
| Indicators | Power LED |
| Wireless | Wi-Fi, 4G/5G |
| Operating System | Windows 10 IoT Enterprise / Windows 11 / Ubuntu 22.04 LTS |
| Power Supply |
| Power Requirement |
12 to 24VDC |
| Environmental and Mechanical |
| Dimension | 150mm x 109.2mm x 75mm |
| Weight | TBD |
| Operating Temp. | -10°C to 50°C |
| Storage Temp. | -40°C to 85°C (-40°F to 176°F) |
| Operating Humidity | 10~95% (non-condensing) |
| Certification |
| Regulations | CE, FCC, LVD |
| Interface |
| Ethernet | 1 x Intel i219-LM GbE 1 x Intel i225-V 2.5GbE |
| USB | 2 x USB 3.2 Type A 2 x USB3.2 Type C (Support DP1.4) |
| Display | 2 x HDMI 2 x DP 1.4 from USB Type C |
| Power Connector | DC Jack |
| Expansion Slot | 1 x M.2 2230 E-Key (USB2.0/PCIex1 interface) support CNVi 1 x M.2 3052 B-Key (USB3.1/USB2.0/PCIex1 interface) 1 x SIM Card Slot |
| Other Interface | Power Button Audio Jack TPM 2.0 |
| Ordering Information |
| Part Number | Intel® Tiger Lake-UP3 i5-1145G7E Processor, Support DDR4 3200MHz up to 64GB |
| Packing List | 1. IES-3015 2. Screws Package 3. Wall Mount |
| Optional Accessories |
| TBD | Power Adapter.12V/120W |
| TBD | Power cord x 1 |
Specifications are subject to change without notice.
| |

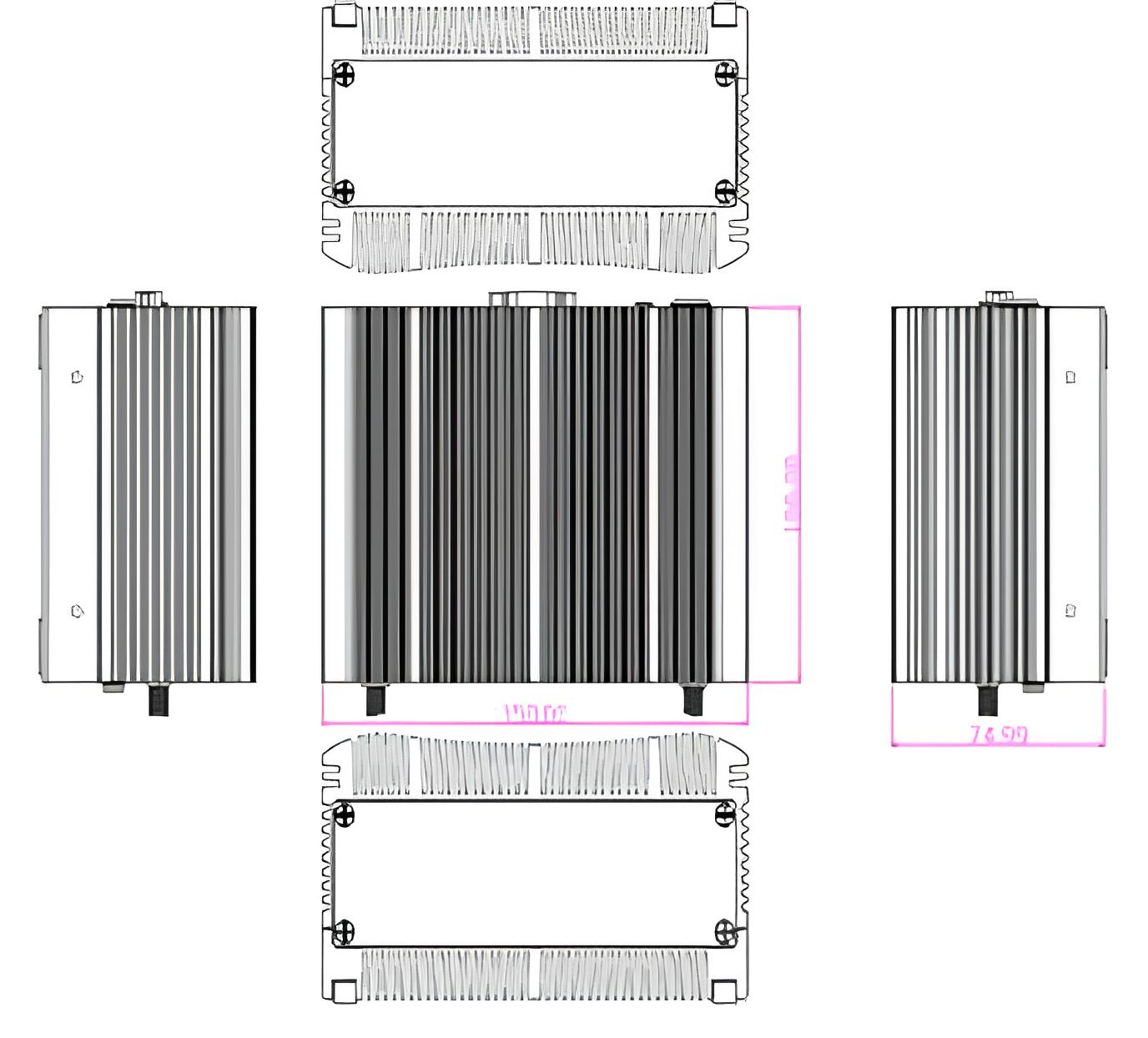

| Dimension |
 |
| |
