| Description |
| Introducing the Acrosser IES-4015, a versatile industrial-grade solution powered by the 11th Gen Intel® Core™ i5-1145G7E Processor SoC. With 2 DDR4 3200MHz SO-DIMM slots supporting up to 64GB of memory, seamless connectivity via Intel i219-LM GbE and Intel i225-V 2.5GbE Ethernet ports, and versatile storage options with M.2 slots, the IES-4015 offers flexible configurations to meet diverse computing requirements. Enhance display capabilities with HDMI and DP ports, while different models provide additional features such as COM ports, GPIO, and GbE LAN options. Experience performance and versatility with the Acrosser IES-4015, tailored for industrial computing needs. |

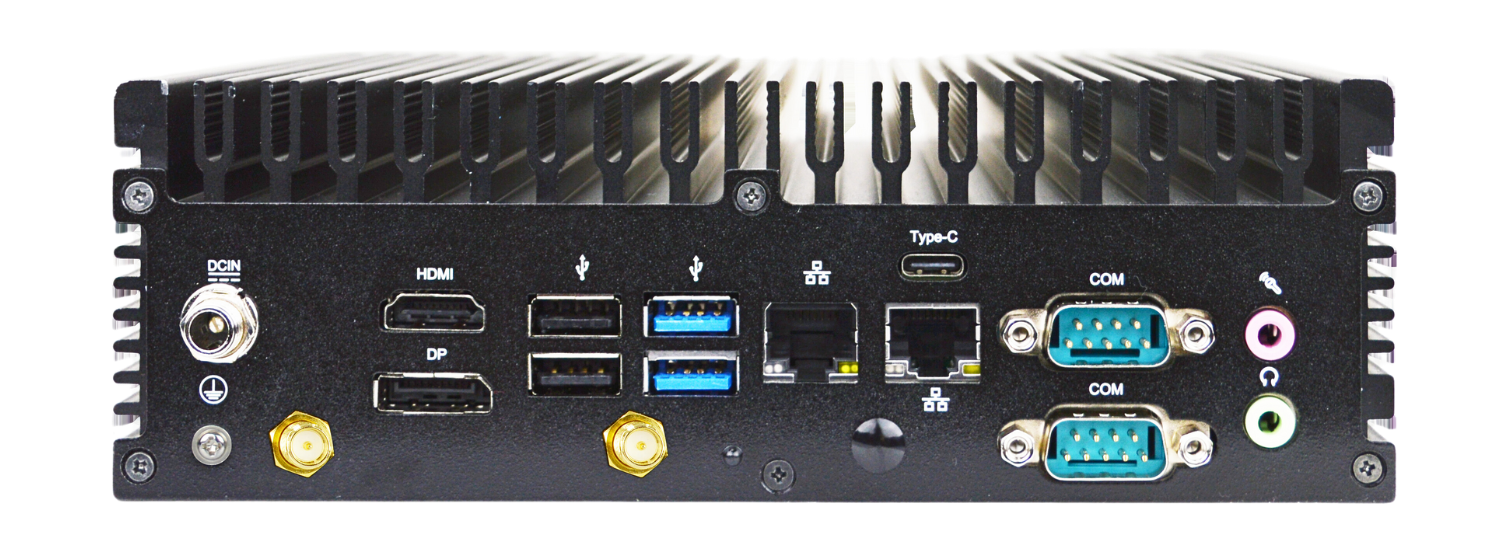

| I/O Connectors |
    |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |

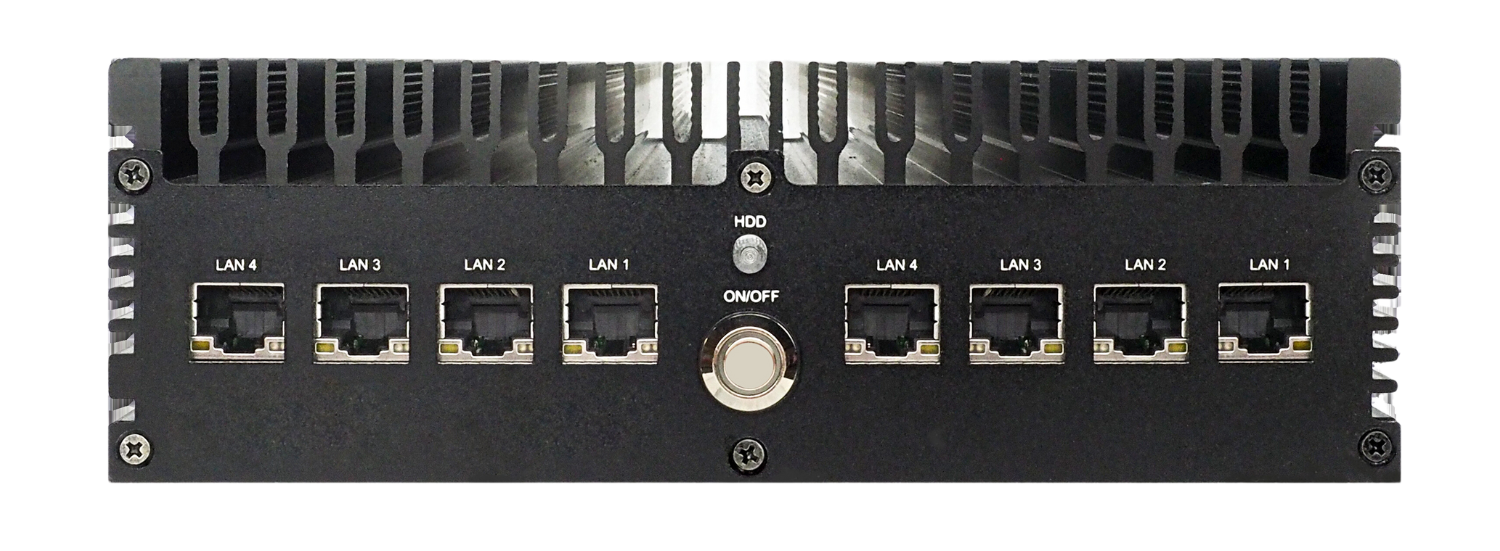

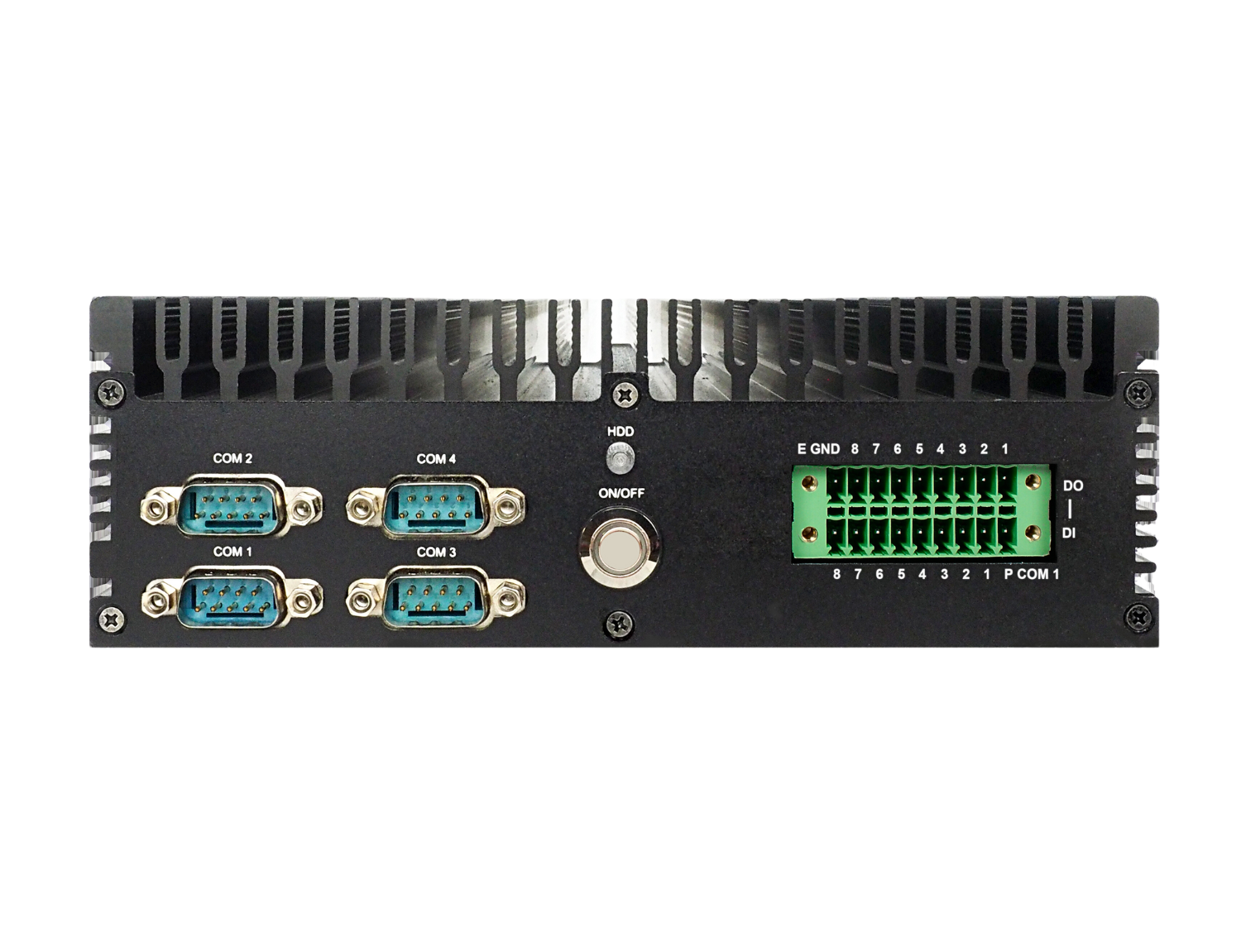

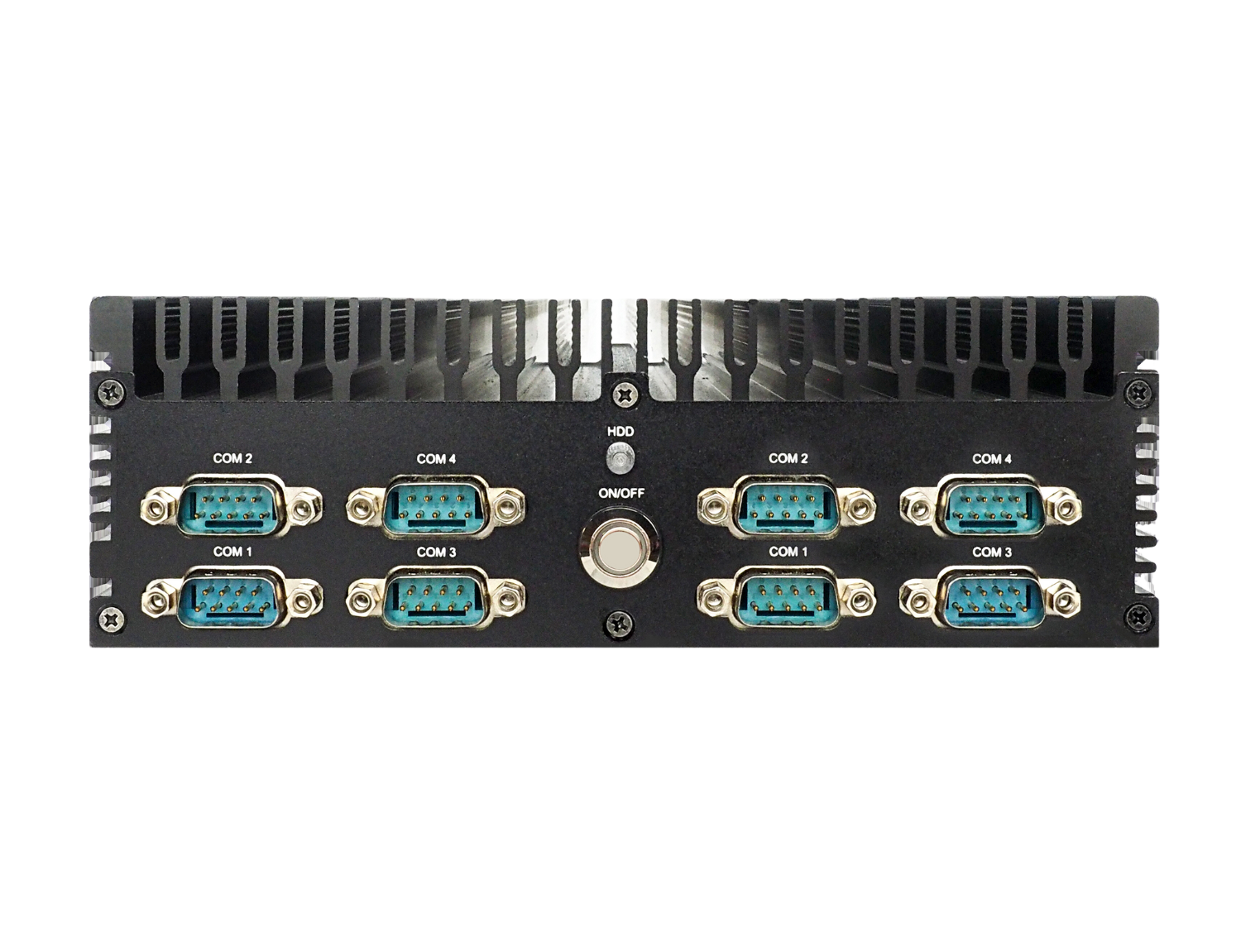

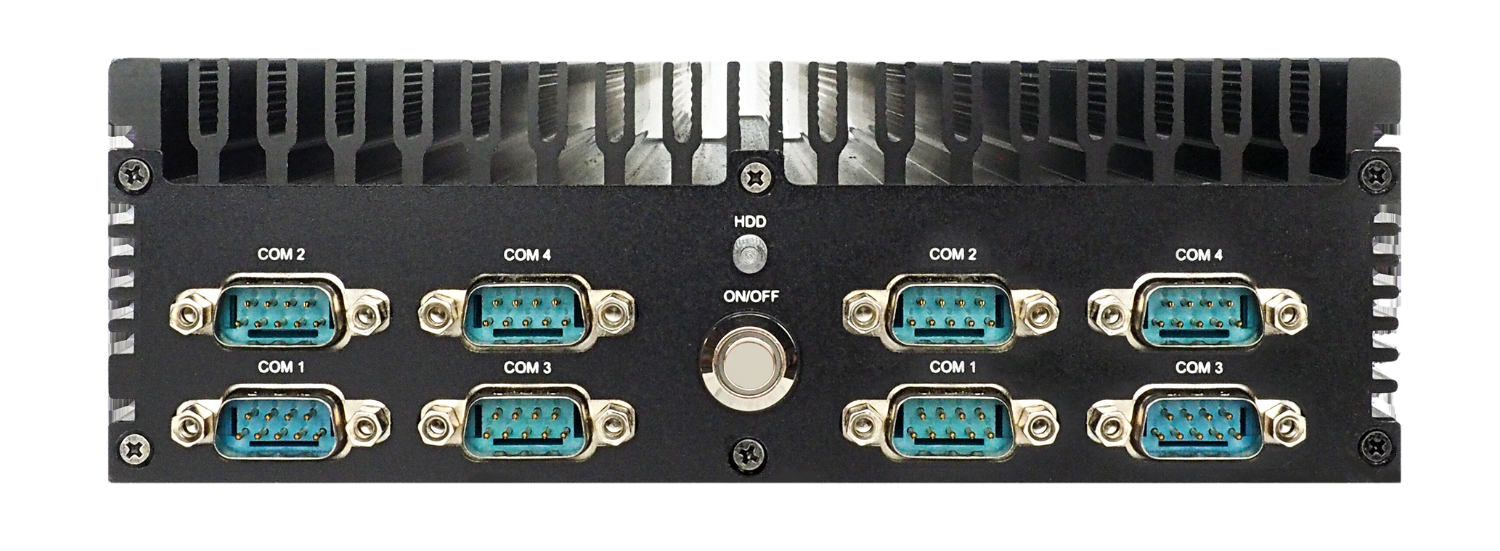

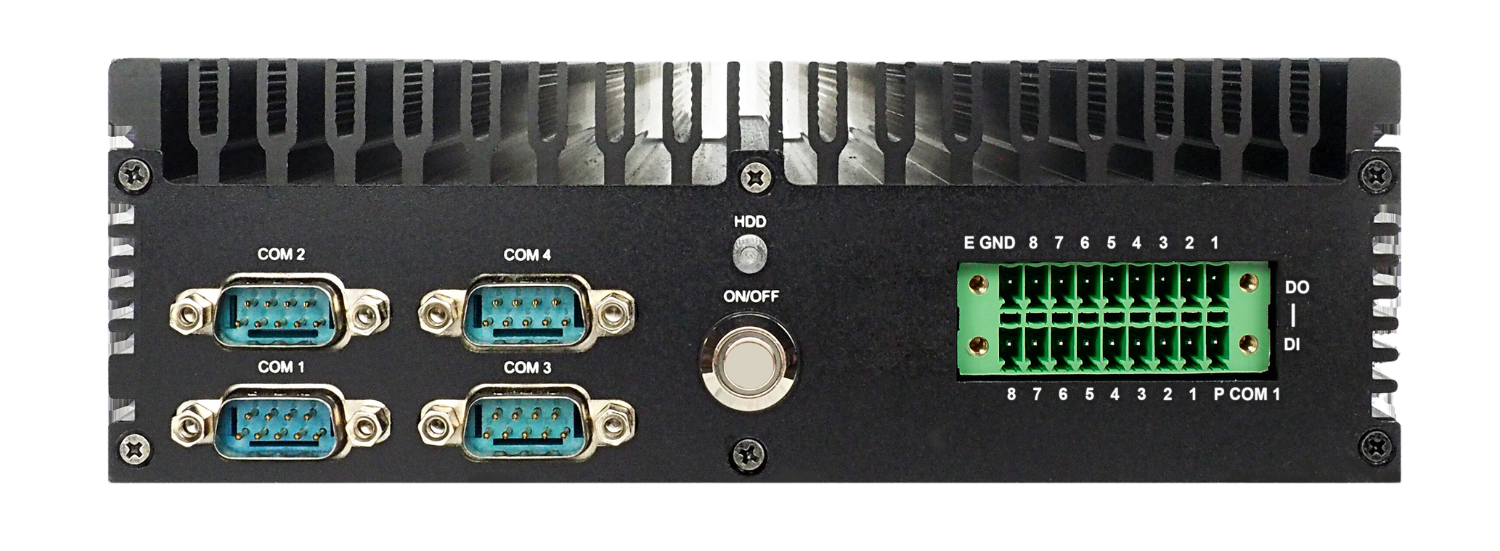

| ● 11th Gen Intel® Core™ i5-1145G7E Processor SoC ● 2 x DDR4 3200MHz SO-DIMM up to 64GB ● 1 x Intel i219-LM GbE, 1 x Intel i225-V 2.5GbE ● 1 x M.2 M-key 2242/2280 support NVMe, 1 x M.2 E-key 2230 Support CNVi, 1 x M.2 B-key 3042/3052 ● 1 x HDMI, 2 x DP ● 4 x COM, 16 bit GPIO (IES-4015-01 Only) ● 8 x COM (IES-4015-02 Only) ● 8 x i211 GbE LAN (IES-4015-03 Only) |
| |
| System |
| CPU/GPU | Intel® Core™ i5-1145G7E (TDP 15W) |
| Memory | 2 x DDR4 3200MHz SO-DIMM up to 64GB |
| Storage | 1 x 2.5” SATA Device (6 Gb/s) 1 x M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) support NVMe |
| Real time clock | Yes |
| Indicators | Power LED, HDD LED |
| Wireless | Wi-Fi, 4G/5G |
| Operating System | Windows 10 IoT Enterprise / Linux |
| Power Supply |
| Power Requirement |
12 to 24VDC |
| Environmental and Mechanical |
| Dimension | 185mm x 175mm x 60mm |
| Weight | TBD |
| Operating Temp. | -20°C to 50°C |
| Storage Temp. | -40°C to 85°C (-40°F to 176°F) |
| Operating Humidity | 10~95% (non-condensing) |
| Certification |
| Regulations | CE, FCC, LVD |
| Interface |
| Serial Port | 2 x RS232 4 x COM (IES-4015-01 Only) 8 x COM (IES-4015-02 Only) |
| Ethernet | 1 x Intel i219-LM GbE 1 x Intel i225-V 2.5GbE 8 x i211 GbE LAN (IES-4015-03 Only) |
| USB | 2 x USB 3.2 Type A 2 x USB 2.0 1 x USB 3.1 Type C (Support DP1.4) |
| Display | 1 x HDMI 1 x DP 1 x DP 1.4 from USB Type C |
| Power Connector | DC Jack |
| Expansion Slot | 1 x M.2 2230 E-Key (USB2.0/PCIex1 interface) support CNVi 1 x M.2 3052 B-Key (USB3.1/USB2.0/PCIex1 interface) 1 x SIM Card Slot |
| Other Interface | Power Button Line out MIC in 16 bit GPIO (IES-4015-01 Only) |
| Ordering Information |
| Part Number | Intel® Tiger Lake i5-1145G7E Processor, 12~24V DC in, 2*DDR4 DRAM, expandable system with cableless and fanless design |
| Packing List | 1. IES-4015 2. Screws Package 3. Wall Mount |
| Optional Accessories |
| TBD | Power Adapter.12V/120W |
| TBD | Power cord x 1 |
Specifications are subject to change without notice.
| |

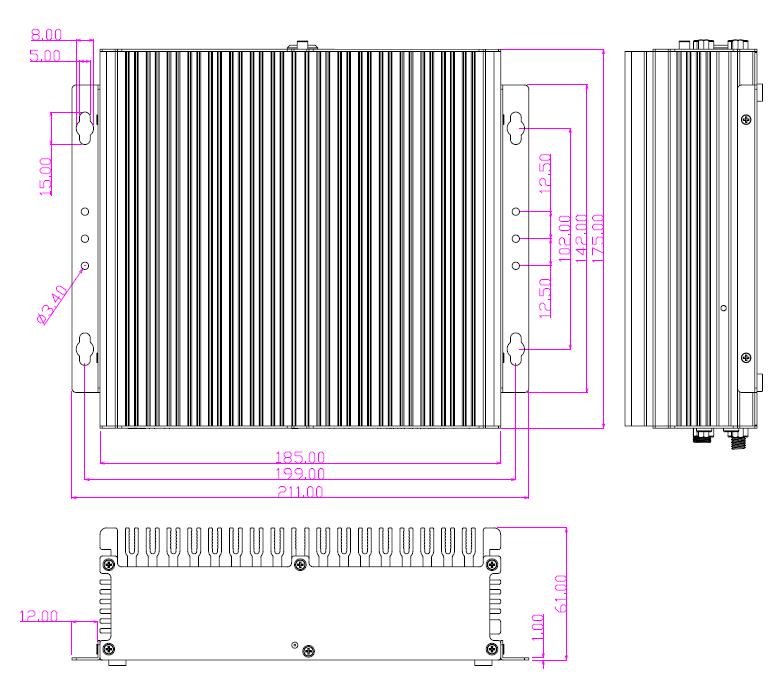

| Dimension |
 |
| |
