Description
IES-5410B, a high-performance embedded computer, is equipped with an Intel 11th Gen Core i7 processor and features a wide power input range with over-voltage protection, making it ideal for in-vehicle, passenger information, and industrial IoT applications. IES-5410B has rich I/O interfaces, including LAN, USB, and SATA III storage bays, and supports wireless networks and 3rd party I/O expansion. The system design is stable, even in harsh temperatures ranging from -20C to 55°C, and has a fanless embedded system design.

  Ask an Expert  >

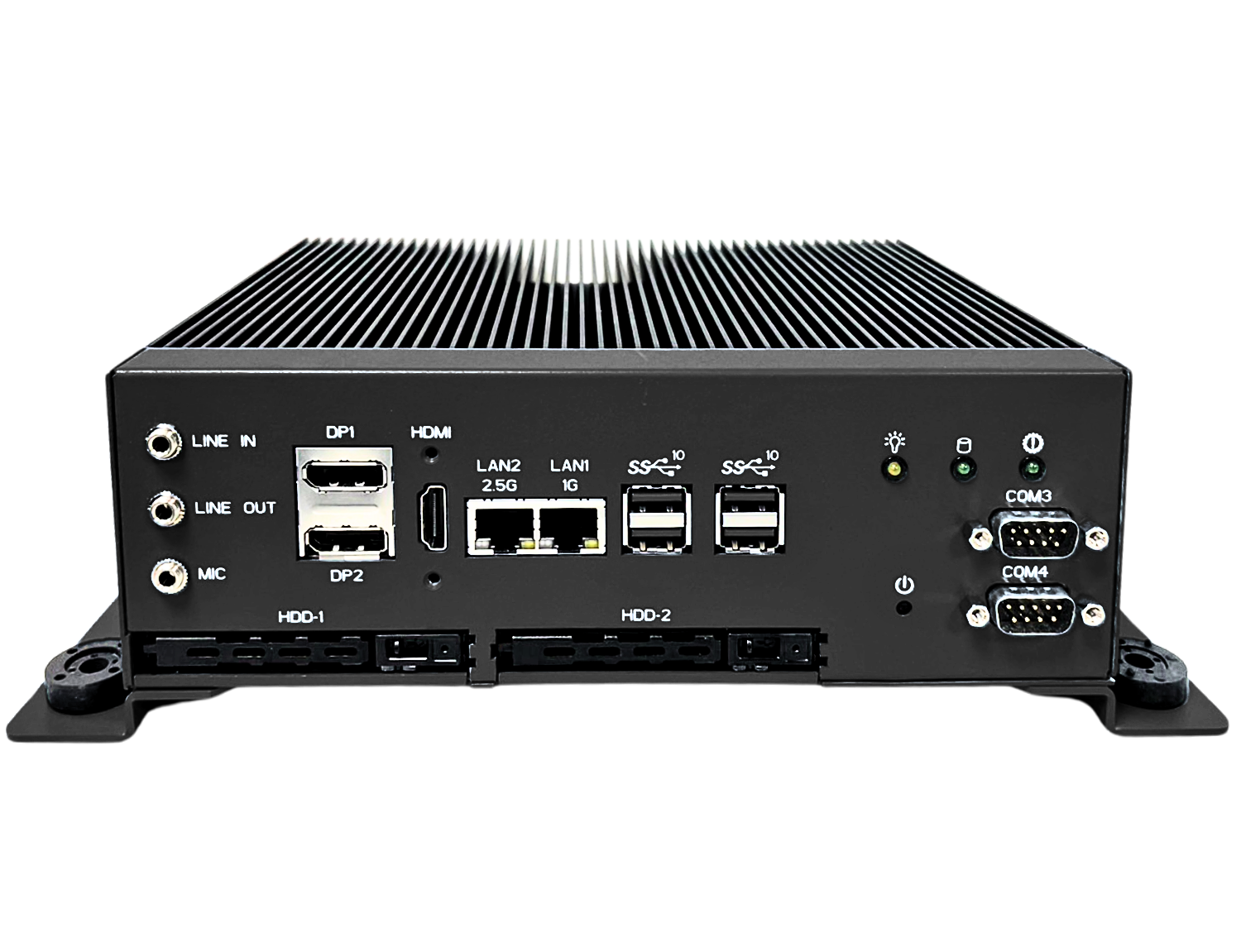

 I/O Connectors

 Acrosser Academy

Acrosser Youtube   Acrosser Twitter   Acrosser Facebook



 Features

1. Intel® 11th Generation Core™ i7/i5/i3 Processor
2. Support 1 DDR4 3200 SODIMM, up to 32GB
3. Support 2.5GbE, USB 3.2 Gen2
4. CAN Bus
5. Two front easy access 2.5” SATA III storage bay
6. 9-32Vdc w/in-vehicle power ignition control
7. Fanless design
8. Wide Operating Temperature -20~55°C



Acrosser Youtube   Acrosser Twitter   Acrosser Facebook
 System
 CPU  i7-11850HE (8C/16T, 2.60GHz, up to 4.70GHz)
 i5-11500HE (6C/12T, 2.60GHz, up to 4.50GHz)
 i3-11100HE (4C/8T, 2.40GHz, up to 4.40GHz
 Memory  1 DDR4-3200 Memory supports up to 32GB (ECC)
 Storage  2 Front-access 2.5" SSD/HDD Tray
 Real time clock  Yes
 Indicators  Power, HDD, Status
 Wireless  Wi-Fi, 4G/5G Lte
 Operating System  Ubuntu 20.04.2/Kernel 5.8 or Linux 4.18 kernel Window 10,   64 bit
 Power Supply
Power Requirement  DC 9-32Vdc w/Power ignition
Power Consumption  --
MTBF (Hours) 70000
 Interface
 Ethernet  LAN 1 : RJ45 Type Intel® I225 2.5GigE LAN
 LAN 2 : RJ45 Type Intel® I219 GigE LAN
 Serial Port  2 x DB9 Type RS-232/RS422/485
 2 x DB9 Type RS-232
 USB  4 x Type A USB 3.2 Gen2
 DI/DO  16 x DIO DB25
 Audio  1 x Mic-in, 1 Line-in, 1 Line-out
 CAN BUS  1 x DB9 CAN Bus
 Display  1 x HDMI , 2 x DP
 Power Connector  3 Pin Pheonix connector
 Expansion Slot  1 x M.2 B Key(3052) for 4G/5G/GPS
 1 x Half Size Mini PCIe slot
 1x Nano SIM card slot
 Other Interface  --
 Other
 TPM  2.0
 Mechanical & Environment
 Dimension  220mm(W) x 175mm(D) x 73mm(H)
 Weight  3.1 Kg
 Mounting  Wallmount
 Operating
 Temperature
 -20°C to 55°C (-4°F to 131°F)
 Storage Temp  -40°C to 80°C (-40°F to 176°F)
 Operating Humidity  5~90% (non-condensing)
 Certification
 Humidity  5% to 90% Humidity, non-condensing
 Shock  IEC 60068-2-27
 SSD : 50G @ wallmount, Half-sine, 11ms
 Vibration  IEC 60068-2-64
 SSD : 5Grms, 5Hz to 500Hz, 3 Axis
 EMC  CE / FCC
