| Description |
|

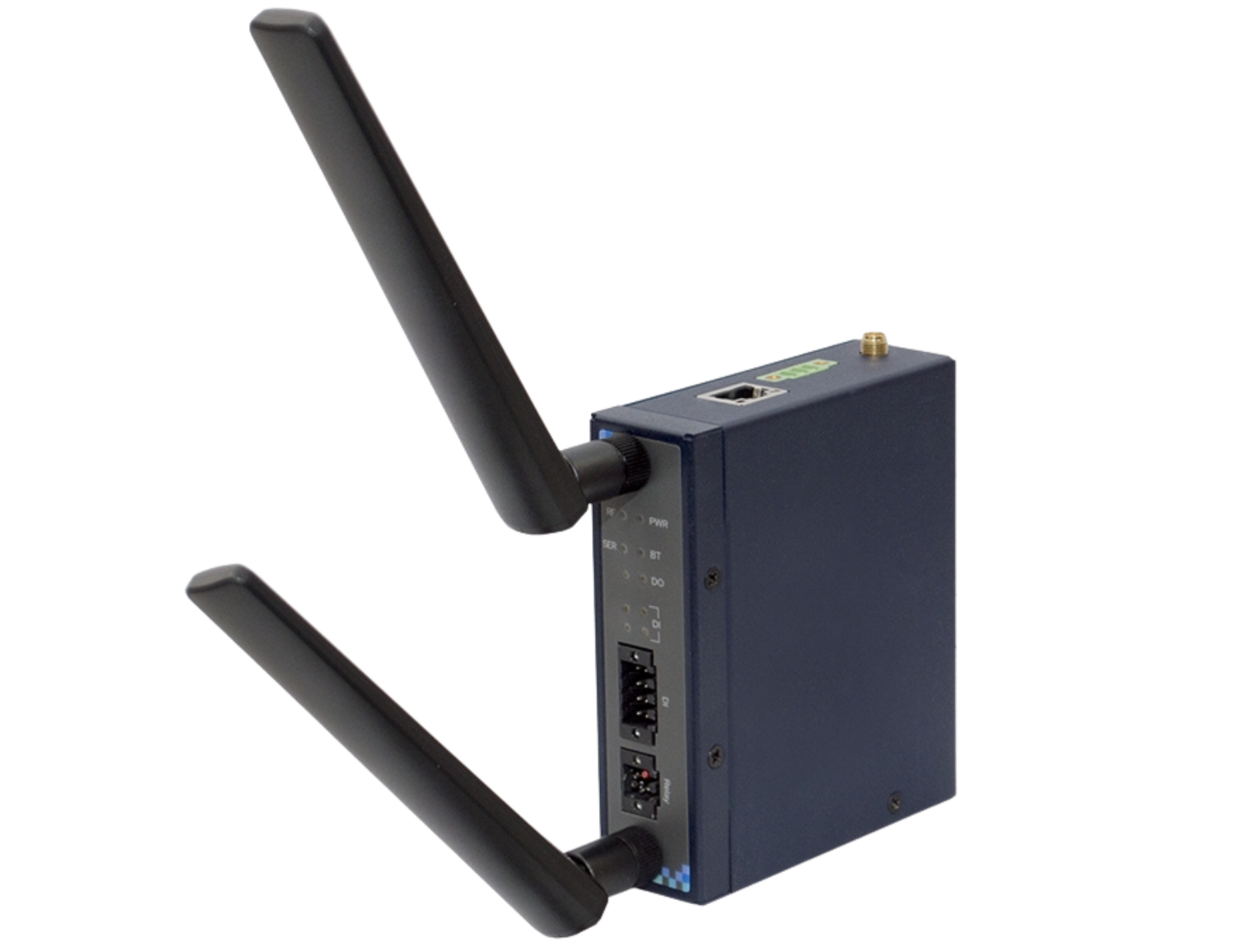

The SPG-Q011 is a powerful IoT Gateway controller that is powered by the ARM Cortex M4 microcontroller. With LTE 4G wireless connectivity and support for wireless protocols such as CAT-NB/M1 and Wi-SUN (upon request), the SPG-Q011 provides reliable and fast connectivity for your IoT devices. In addition, the SPG-Q011 features GPS support via its 4G LTE or CAT-NB/M1 module, allowing you to track the location of your devices with ease. Multiple I/O interface connections are available for data collection, and the device also supports an embedded Real-Time OS for efficient processing. The SPG-Q011 also includes a data logger with time stamp functionality, allowing you to easily track and analyze your data. With a wide operating temperature range of -20˚C to 70˚C, this IoT gateway controller is suitable for use in a variety of environments. Overall, the SPG-Q011 is an excellent choice for those looking to build a reliable and efficient IoT network. |
| I/O Connectors |
 |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
|
● Powered by ARM Cortex M4 |
| |
| System |
| CPU/GPU | ARM Cortex M4F |
| Memory | 128 M-bit Flash |
| Storage | External Micro SD slot, Max. 32GB |
| Real time clock | Yes |
| Indicators | LED indicator x 10 |
| Cellular | Mini PCIe Connector x 1 (UART Signal) |
| Wireless LAN | BT 5.0 |
| Operating System | Embedded real-time OS: Zephyr Version: 3.0.99 |
| Support Protocol | Modbus RTU to MQTT |
| Power Supply |
| Power Requirement |
12/24 VDC |
| Power Consumption |
12V/2.29W, 24V/3.14W, Normal used |
| MTBF (Hours) | -- |
| Environmental and Mechanical |
| Dimension | 6.3” x 4.18” x 1.07” (160 x 106 x 27 mm) |
| Weight | 450 g |
| Mouting/ Installation |
Din Rail |
| Operating Temp. | -4 °F ~ 158 °F (-20 °C ~ 70 °C) |
| Storage Temp. | -40 °F ~ 176 °F (-40 °C ~ 85 °C) |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC |
| Carrier | Planning |
| Interface |
| Serial Port | 1 x RS232/RS485(2W,3W), Terminal Block |
| Ethernet | 1 x 10/100Mbps LAN, RJ45 |
| USB | -- |
| ADC | -- |
| DI/DO | -- |
| AI/AO | -- |
| CAN Bus | -- |
| Display | -- |
| Power Connector | 1 x 3pin Terminal Block |
| Debug Port | 1 x Micro USB for console |
| Other Interface | 1 x SIM card slot 1 x Micro SD slot |
| Other Interface | -- |
| Radio Frequency |
| LTE 4G (CAT 1) (by model) |
3GPP Rel.9 compliant protocol Frequency bands: FDD LTE: B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13/B18 /B19 /B20 /B25 /B26 /B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| SIM card size: Micro-SIM slot Antenna type: External type Antenna connector: SMA-Male |
|
| CAT-NB / CAT-M1 (by model) |
3GPP Rel.9 compliant protocol Frequency bands: FDD LTE: B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18/B19 /B20 /B25 /B26 /B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| SIM card size: Micro-SIM slot Antenna type: External type Antenna Connector: SMA-Male |
|
| GPS (by model) | GPS/GLONASS/BeiDou (Compass)/Galileo |
| Packing List |
| SPG-Q011-A10-0000 | 1 xSPG-Q100, 1 xDIN Mounting Kits |
| SPG-Q011-A10-0001 | 1 xSPG-Q100, 1 xLTE 4G Module, 1 xAntenna, 1 xDIN Mounting Kits |
| SPG-Q011-A10-0002 | 1 xSPG-Q100, 1 xCAT-NB/M1 Module, 1 xAntenna, 1 xDIN Mounting Kits |
| Ordering Information |
| SPG-Q011-A10-0000 | Protocol Gateway, ARM Cortex M4, 12/24VDC |
| SPG-Q011-A10-0001 | Protocol Gateway, ARM Cortex M4, LTE 4G, 12/24VDC |
| SPG-Q011-A10-0002 | Protocol Gateway, ARM Cortex M4, NB/M1, 12/24VDC |
| Optional Accessories |
| 9741EG25G0 | PCIe mimi card. 4G LTE. EG25-G |
| 9697PT0003-D | PCIe mimi card. CAT-NB/CAT-M1. EXS62 |
| 170X000099 | Antenna, LTE / CAT-NB and M1, Full Band |
| 978966660G | Antenna. GPS |
| 1255X00072 | Power Adapter. AC/DC. 100-240VAC. 12VDC/3A.36W. |
Specifications are subject to change without notice.
| |
| Dimension |
|
|
| |
