| Description |

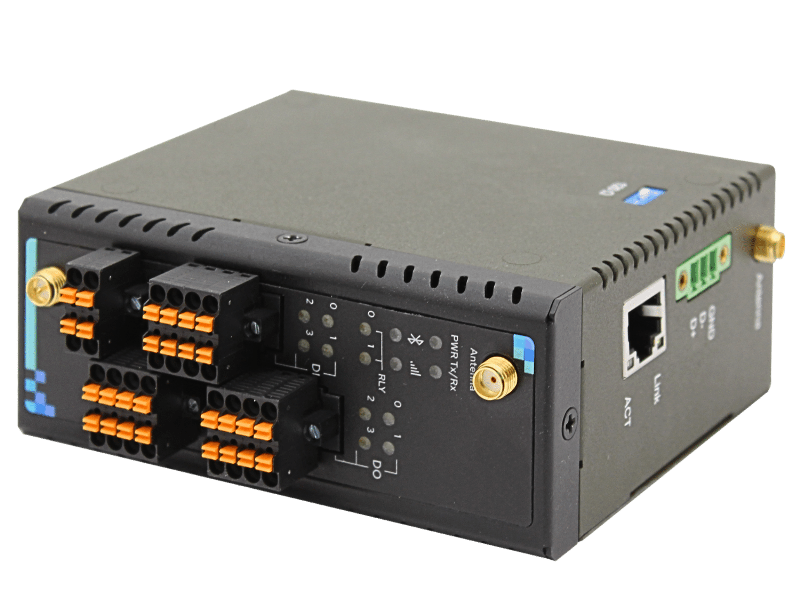

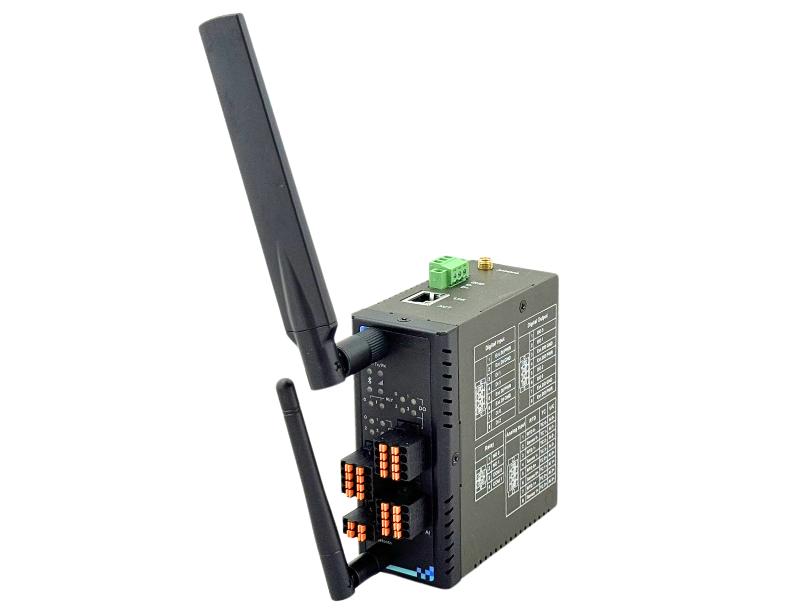

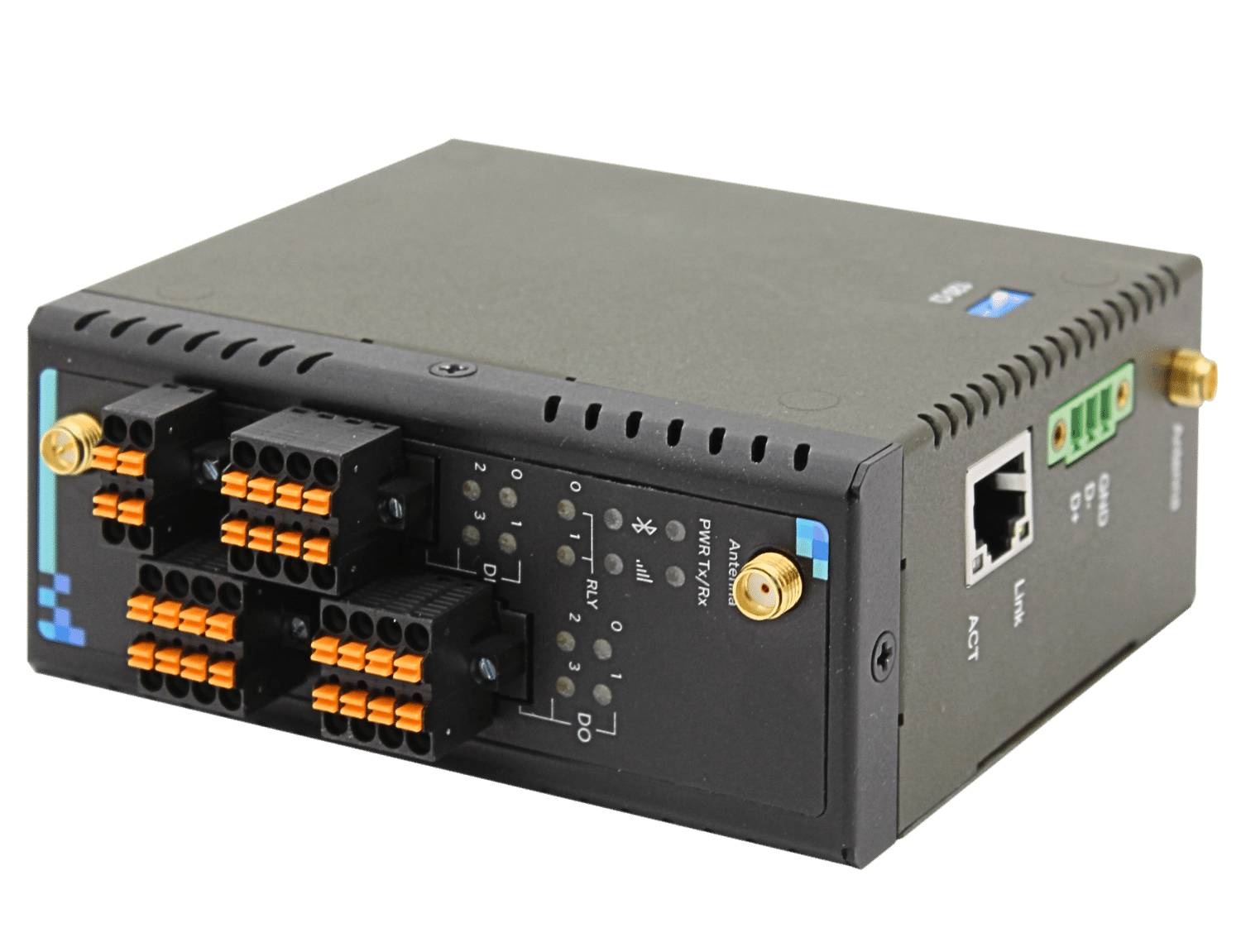

| Introducing the SPG-QM44, a Programmable Automation Controller powered by ARM Cortex M4F. With LTE 4G Wireless connectivity, this device offers CAT-NB/M1 and Wi-SUN wireless options upon request. It also supports GPS via the 4G LTE or CAT-NB/M1 module. The SPG-QM44 features industrial grade programmable I/O and multiple I/O interface connections for data collection. Additionally, it comes with embedded Real-Time OS support and a data logger with time stamp. With a wide operating temperature range of -20˚C to 70˚C, the SPG-QM44 is the perfect solution for your industrial automation needs. |

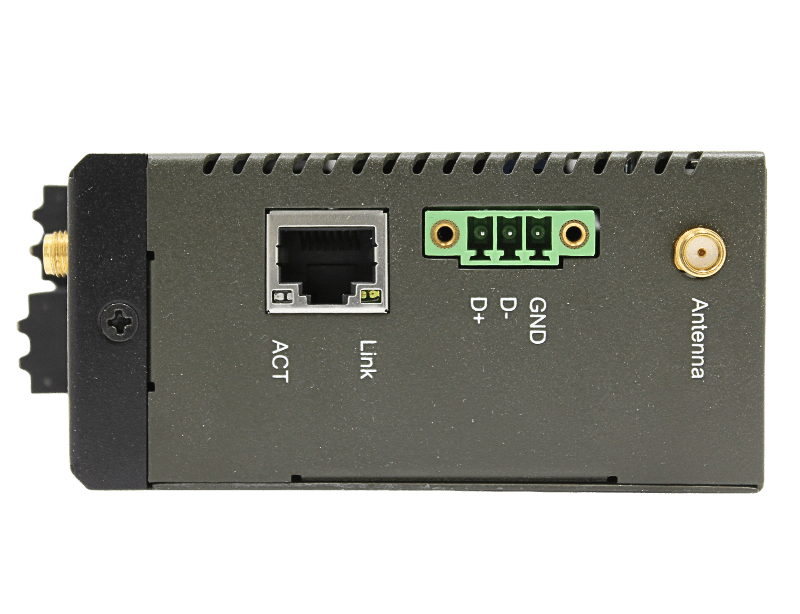

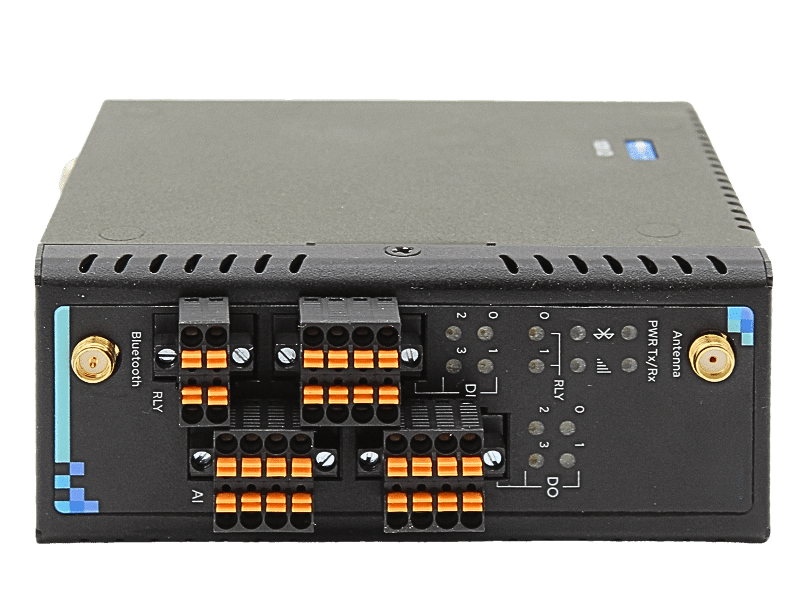

| I/O Connectors |
 |
| Ask an Expert > |
|
| Acrosser Academy |
   3.gif) |
| Features |
|
● Powered by ARM Cortex M4 |
| |
| System |
| CPU/GPU | ARM Cortex M4F |
| Memory | 128 M-bit Flash |
| Storage | External Micro SD slot, Max. 32GB |
| Real time clock | Yes |
| Indicators | LED indicator x 10 |
| Cellular | Mini PCIe Connector x 1 (UART Signal) |
| Wireless LAN | BT 5.0 |
| Operating System | Embedded real-time OS: Zephyr Version: 3.0.99 |
| Support Protocol | Modbus RTU to MQTT |
| Power Supply |
| Power Requirement |
12/24 VDC |
| Power Consumption |
12V/2.29W, 24V/3.14W, Normal used |
| MTBF (Hours) | -- |
| Environmental and Mechanical |
| Dimension | 4.17“ x 3.54“ x 1.73“ (106 x 90 x 44 mm) |
| Weight | 450 g |
| Mouting/ Installation |
Din Rail |
| Operating Temp. | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Storage Temp. | -40 °F ~ 176 °F (-40 °C ~ 85 °C) |
| Operating Humidity | 5% ~ 95% relative humidity, non-condensing |
| Certification |
| Regulations | CE, FCC |
| Carrier | Planning |
| Interface |
| Serial Port | 1 x RS232/RS485(2W,3W), Terminal Block |
| Ethernet | 1 x 10/100Mbps LAN, RJ45 |
| USB | -- |
| ADC | -- |
| DI/DO | 4x Digital input, 4x Digital output, 2x Relay |
| AI/AO | 4 x Analog input or 4 x TC or 2 x 4wire RTD |
| CAN Bus | -- |
| Display | -- |

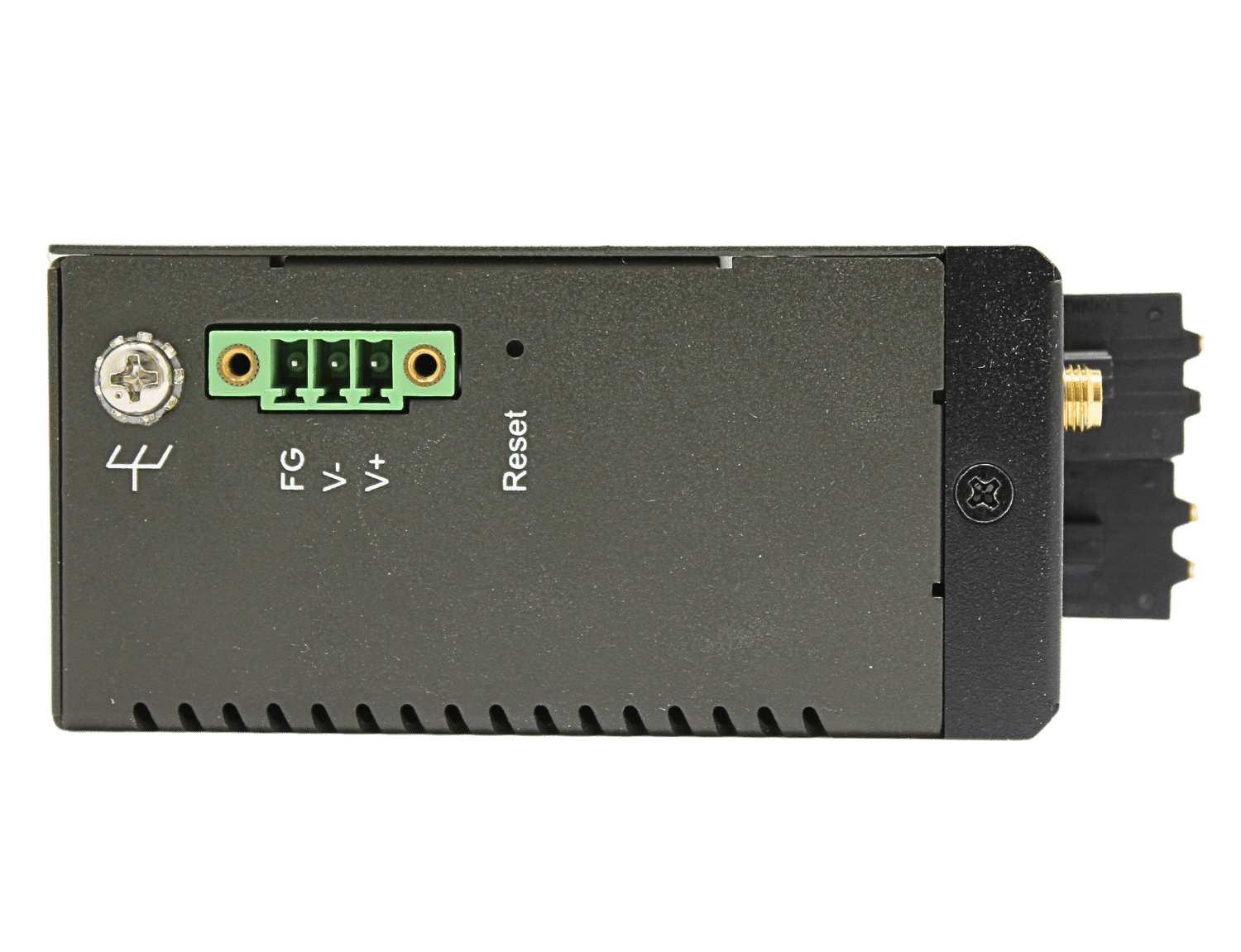

| Power Connector | 1 x 3pin Terminal Block |
| Debug Port | 1 x Micro USB for console |
| Other Interface | 1 x SIM card slot 1 x Micro SD slot |
| Other Interface | -- |
| Radio Frequency |
| LTE 4G (CAT 1) (by model) |
3GPP Rel.9 compliant protocol Frequency bands: FDD LTE: B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| SIM card size: Micro-SIM slot Antenna type: External type Antenna connector: SMA-Male |
|
| CAT-NB / CAT-M1 (by model) |
3GPP Rel.9 compliant protocol Frequency bands: FDD LTE: B1 /B2 /B3 /B4 /B5 /B7 /B8 /B12 /B13 /B18 /B19 /B20 /B25 /B26 /B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| SIM card size: Micro-SIM slot Antenna type: External type Antenna Connector: SMA-Male |
|
| GPS (by model) | GPS/GLONASS/BeiDou (Compass)/Galileo |
| Packing List |
| SPG-QM44-A10-0000 | 1 xSPG-QM44, 1 xDIN Mounting Kits |
| SPG-QM44-A10-0001 | 1 xSPG-QM44, 1 xLTE 4G Module, 1 xAntenna, 1 xDIN Mounting Kits |
| SPG-QM44-A10-0002 | 1 xSPG-QM44, 1 xCAT-NB/M1 Module, 1 xAntenna, 1 xDIN Mounting Kits |
| Ordering Information |
| SPG-QM44-A10-0000 | Protocol Gateway, ARM Cortex M4, LTE 4G, 12/24VDC |
| SPG-QM44-A10-0001 | Protocol Gateway, ARM Cortex M4, LTE 4G, 12/24VDC |
| SPG-QM44-A10-0002 | Protocol Gateway, ARM Cortex M4, NB/M1, 12/24VDC |
| Optional Accessories |
| Adapter | Power Adapter. AC/DC. 100-240VAC. 12VDC/3A.36W. |
Specifications are subject to change without notice.
| |

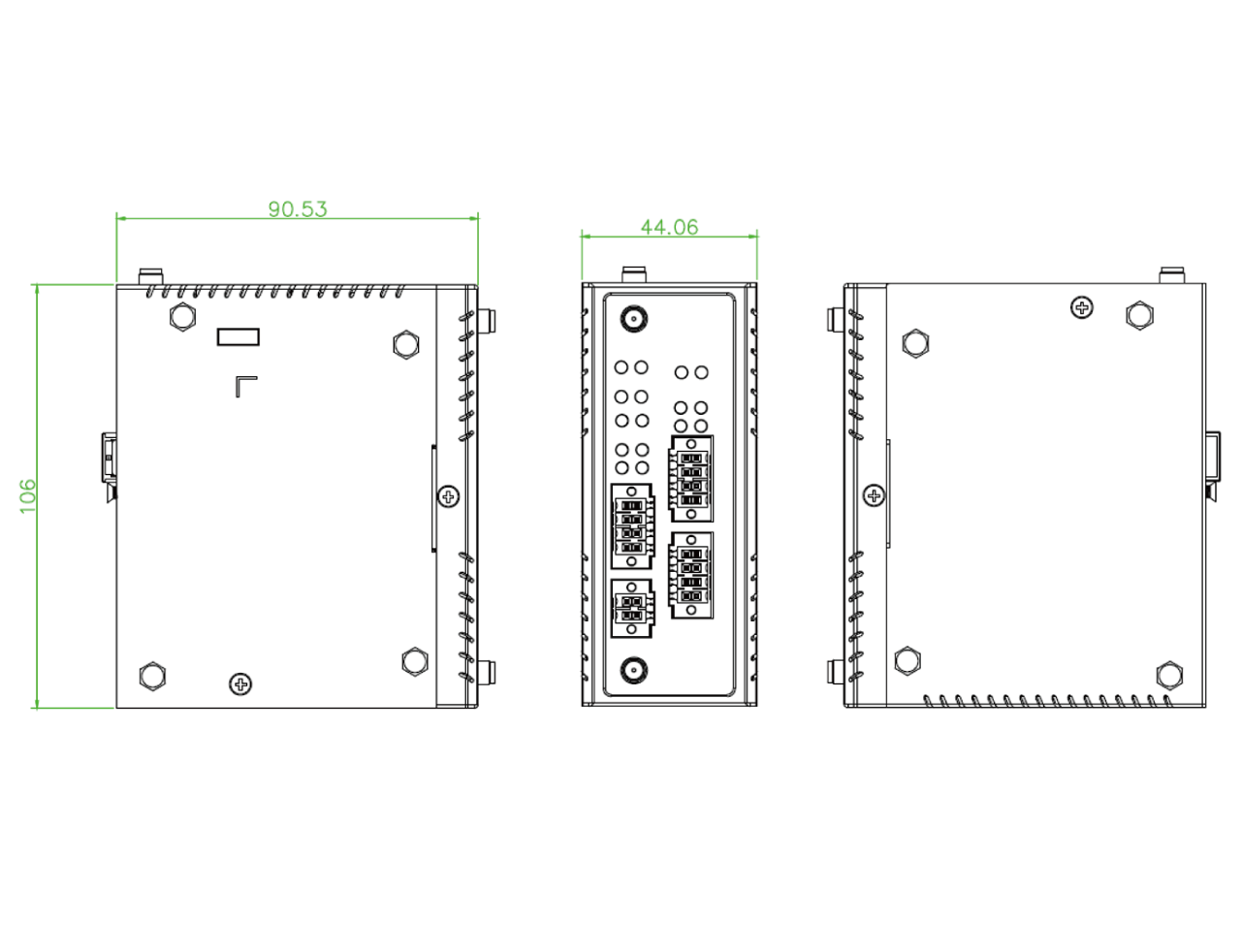

| Dimension |
|
|
| |
